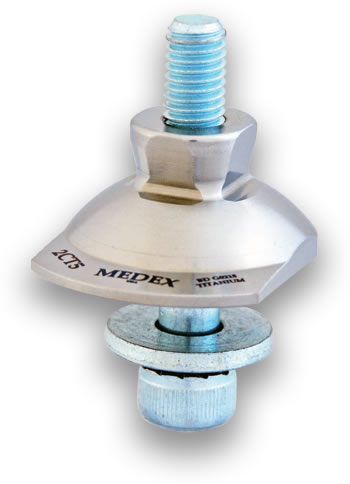

2CT5
Child SACH Foot Adapter
Child sized connector between SACH Energy Storing Foot and pylon. Includes stainless steel bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
62gr |
80kg/175lbs |
|
|
 |

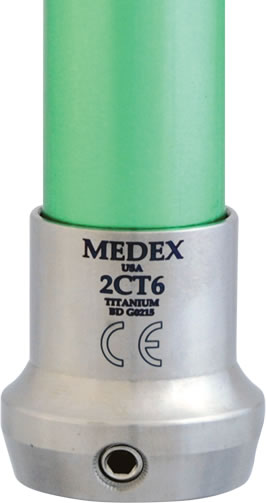

2CT6
Child Pylon With Receiver
With 4 M6 tilt adjustment set screws and 22mm anodized aluminum alloy tube. (300 x 22 x 2mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
113gr |
80kg/175lbs |
300mm |
|
|
 |

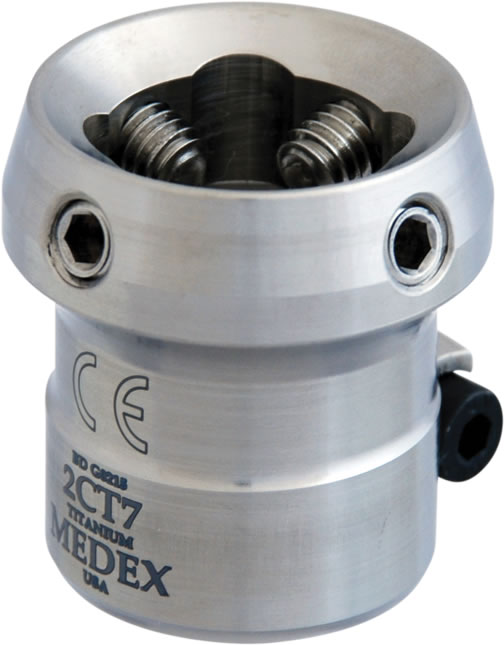

2CT7
Child Tube Clamp Adapter
For 22mm tubes. Includes 1 rotation and 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
40gr |
80kg/175lbs |
34mm |
|
|
 |

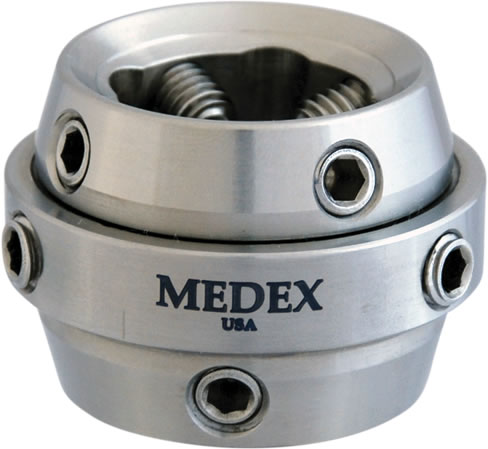

3CT1
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
69gr |
80kg/175lbs |
26mm |
|
|
 |

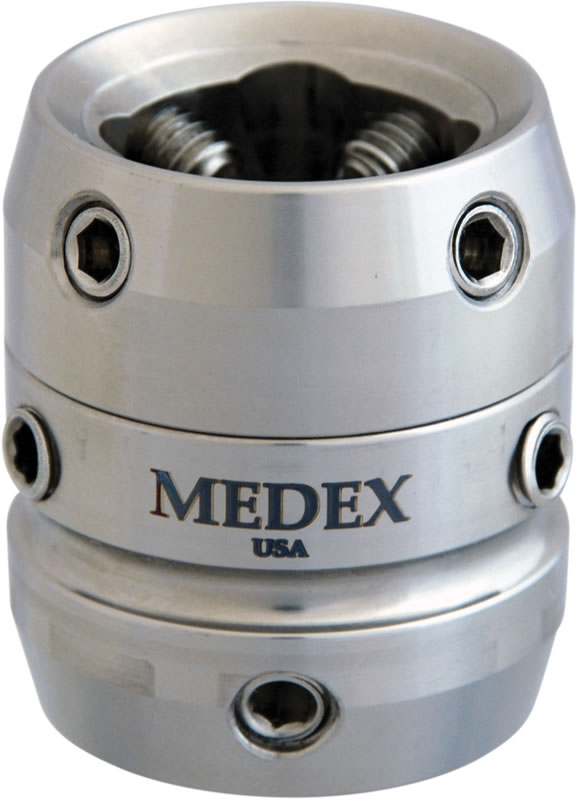

3CT2
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
79gr |
80kg/175lbs |
37mm |
|
|
 |

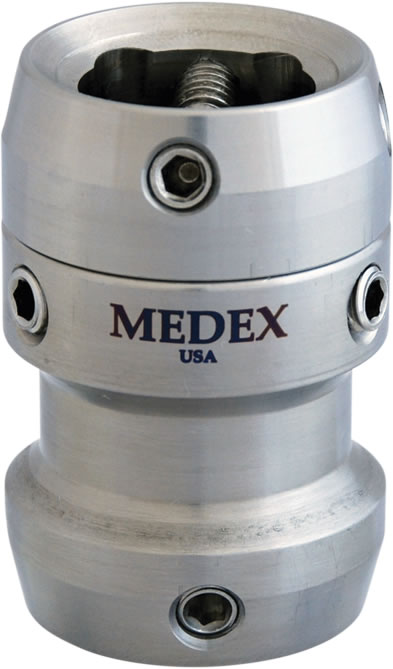

3CT3
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
88gr |
80kg/175lbs |
48mm |
|
|
 |

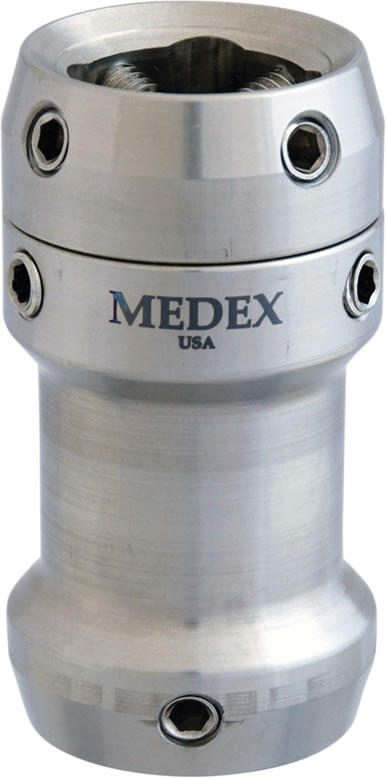

3CT4
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
94gr |
80kg/175lbs |
60mm |
|
|
 |

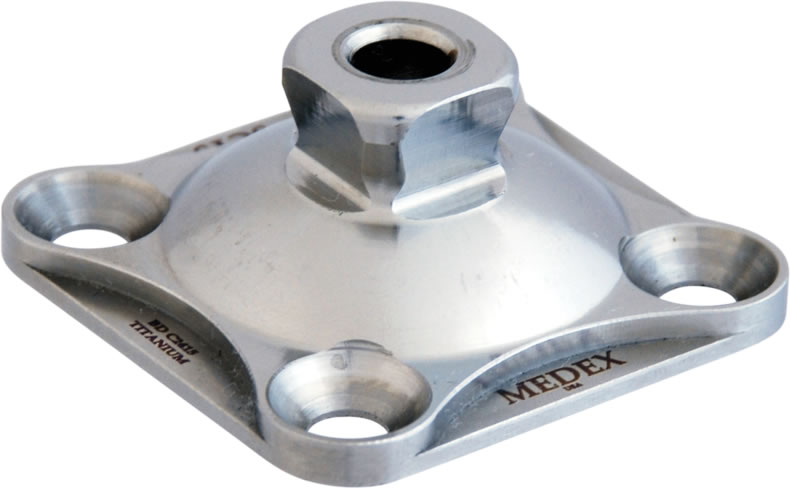

3CT5
Child Pyramid With 4 Holes
Connector between socket and pylon, 6.5mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
26gr |
80kg/175lbs |
10mm |
|
|
 |

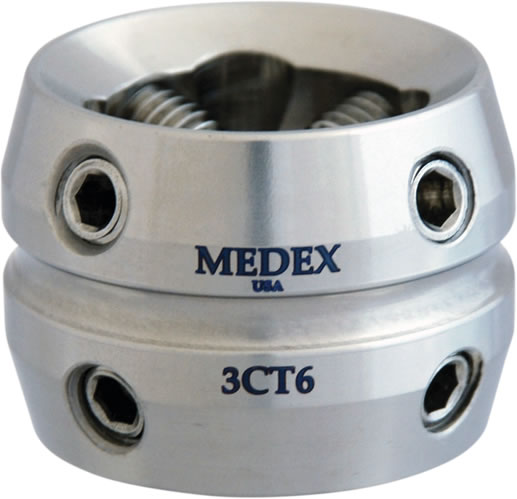

3CT6
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
44gr |
80kg/175lbs |
22mm |
|
|
 |

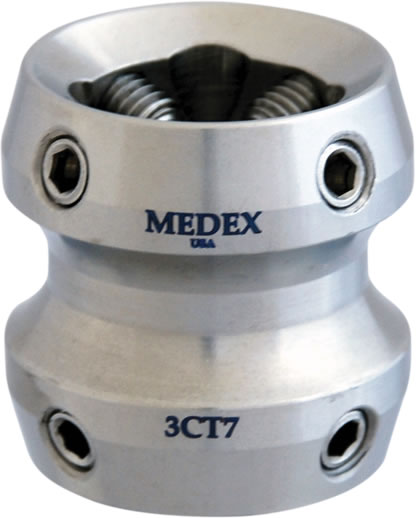

3CT7
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
51gr |
80kg/175lbs |
32mm |
|
|
 |

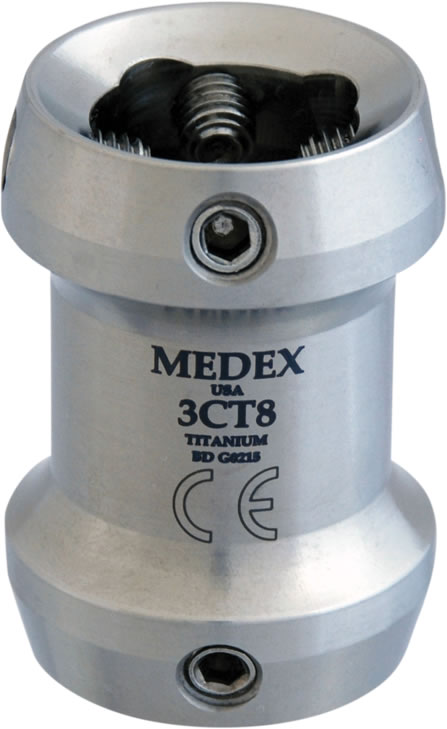

3CT8
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
60gr |
80kg/175lbs |
45mm |
|
|
 |

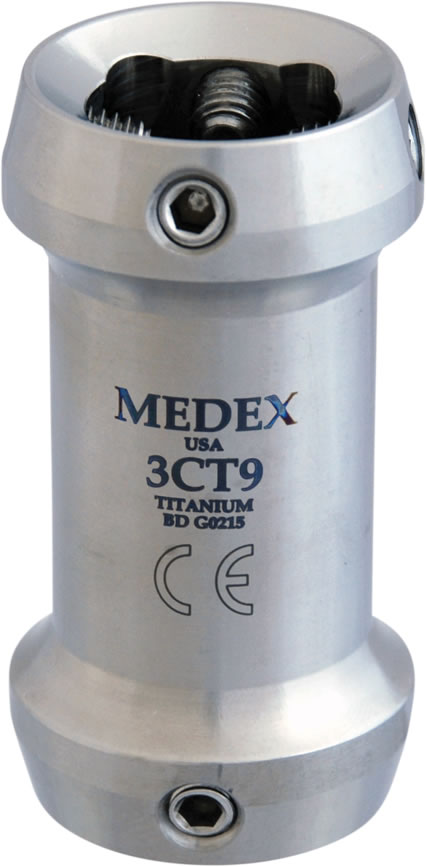

3CT9
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
70gr |
80kg/175lbs |
60mm |
|
|
 |

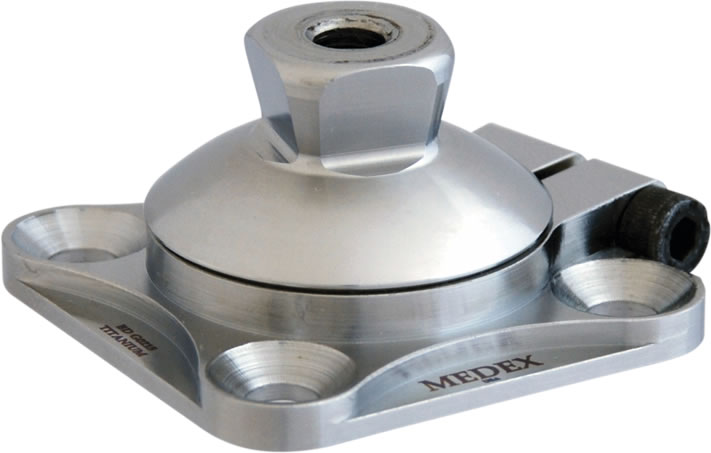

3TC1
Child Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
44gr |
80kg/175lbs |
|
|
 |

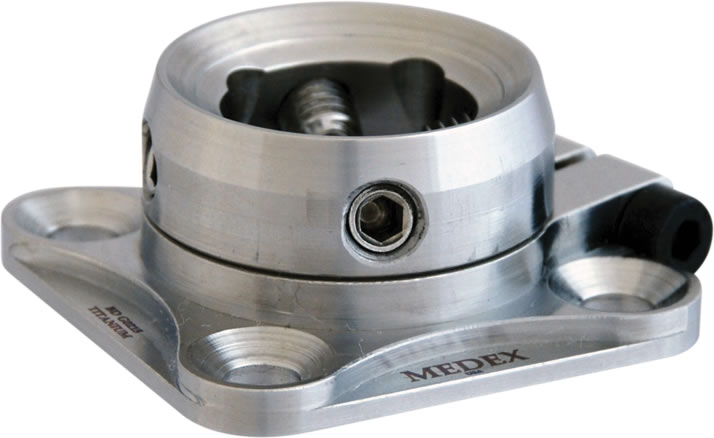

3TC2
Child Rotating Receiver With 4 Holes
Child sized rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
51gr |
80kg/175lbs |
|
|
 |

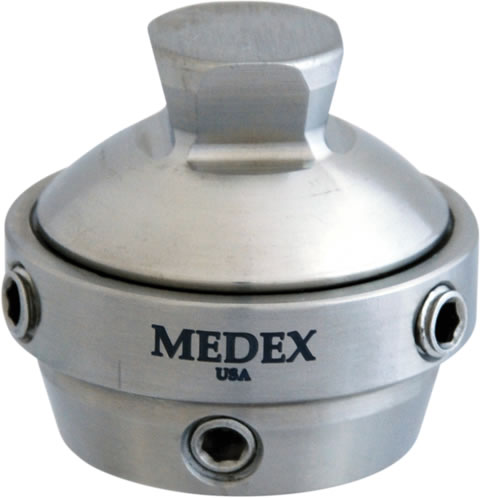

4CT1
Child Double Head Rotating Receiver & Pyramid
Offers a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using 3 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
66gr |
80kg/175lbs |
0mm |
|
|
 |

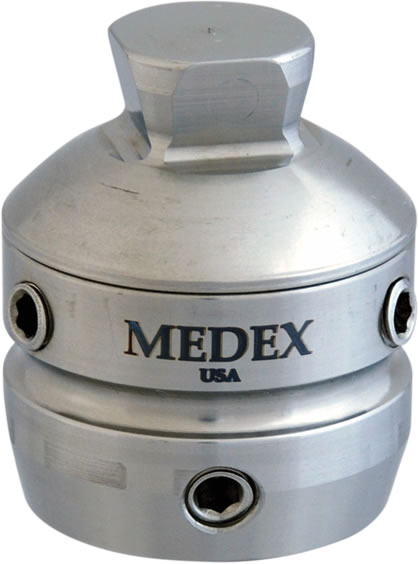

4CT2
Child Double Head Rotating Receiver & Pyramid
Offers a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using 3 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
72gr |
80kg/175lbs |
30mm |
|
|
 |

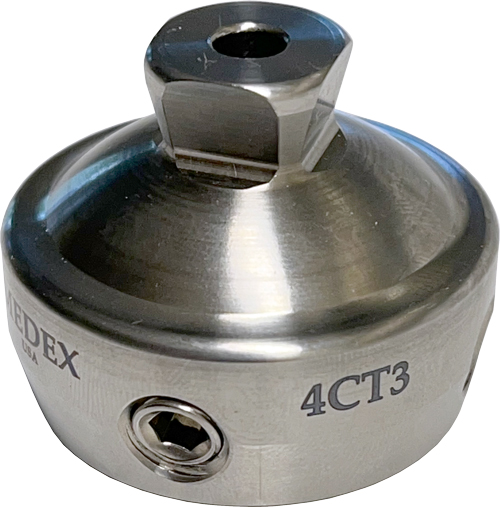

4CT3
Double Head Pyramid to Pediatric Converter
One end pediatric pyramid and the other end adult four screw pyramid receiver. Converts adult pyramid to pediatric pyramid.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
65gr |
80kg/175lbs |
15mm |
|
|
 |

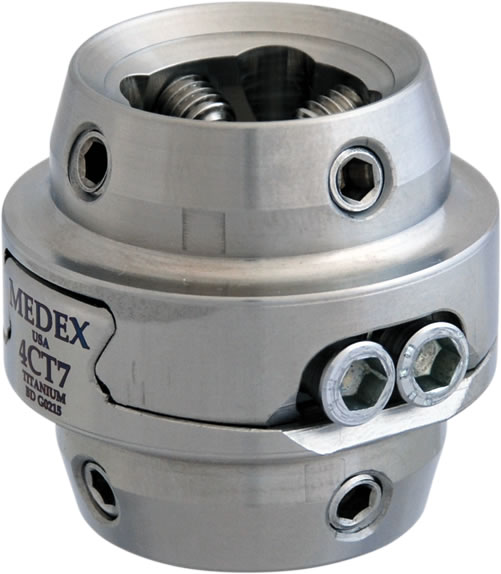

4CT7
Child Double Head Arched Sliding Receiver
Double ended receiver. Arched dovetail design provides adjustable angles, increasing lateral offset capability based on the pylon length. Safety locked at desired position using 2 easy-access rotation set screws. Includes 8 M6 tilt adjustment set screws. Overall height 37mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
116gr |
80kg/175lbs |
38mm |
|
|
 |

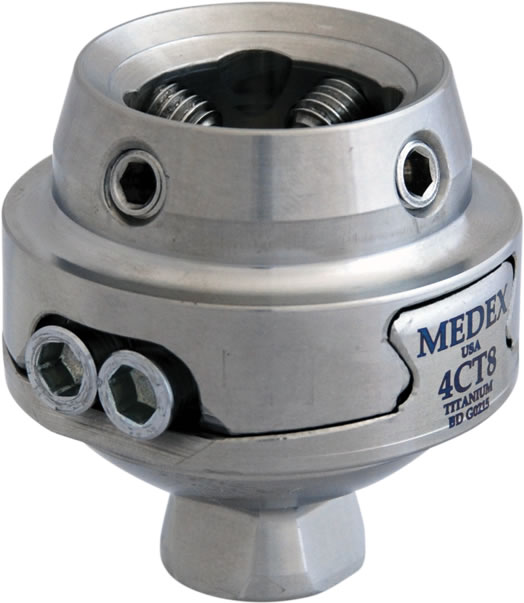

4CT8
Child Double Head Arched Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length.
Safety locked at desired position using 2 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws. Overall height 42mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
121gr |
80kg/175lbs |
34mm |
|
|
 |

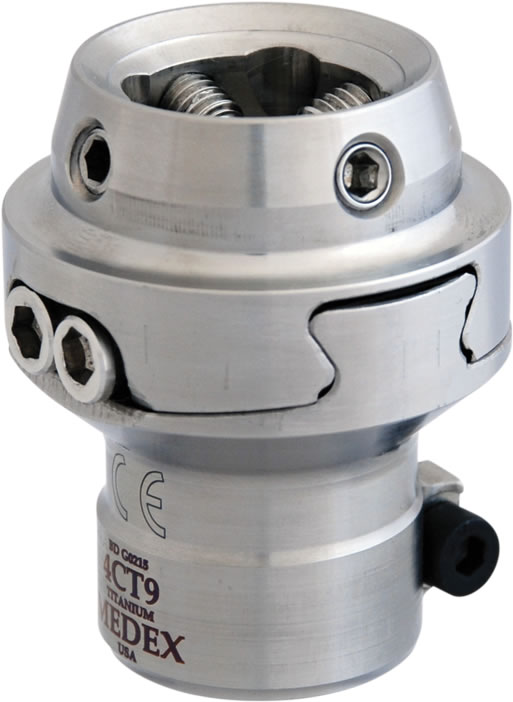

4CT9
Child Sliding Tube Clamp Pyramid
Child sized tube clamp adapter on one end and pyramid on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
93gr |
80kg/175lbs |
|
|
 |

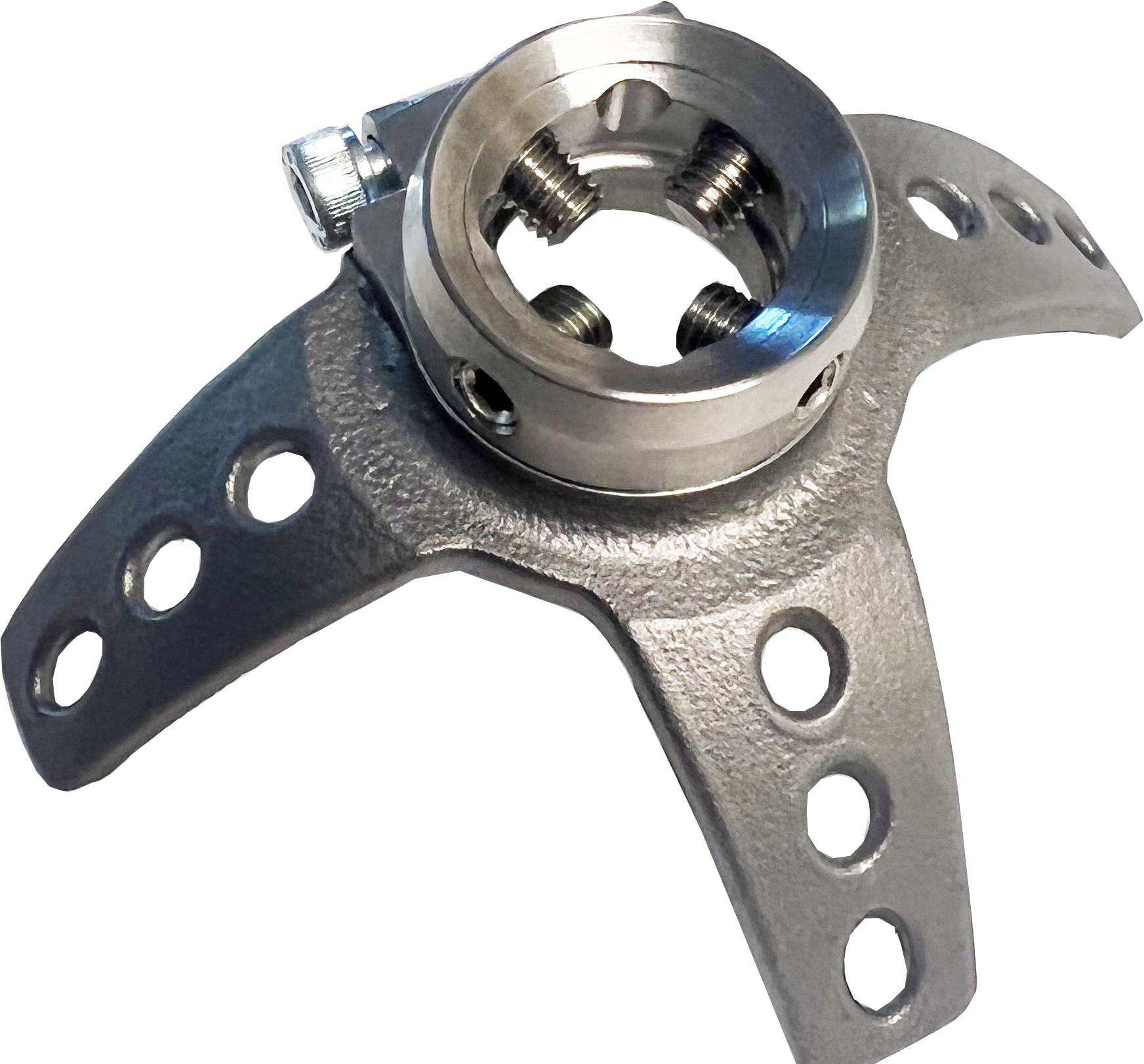

4TC1
Child 3 Arm A/K Lamination Anchor With Rotating Receiver
For both A / K Exoskelatal Socket or Thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
116gr |
80kg/175lbs |
26mm |
|
|
 |

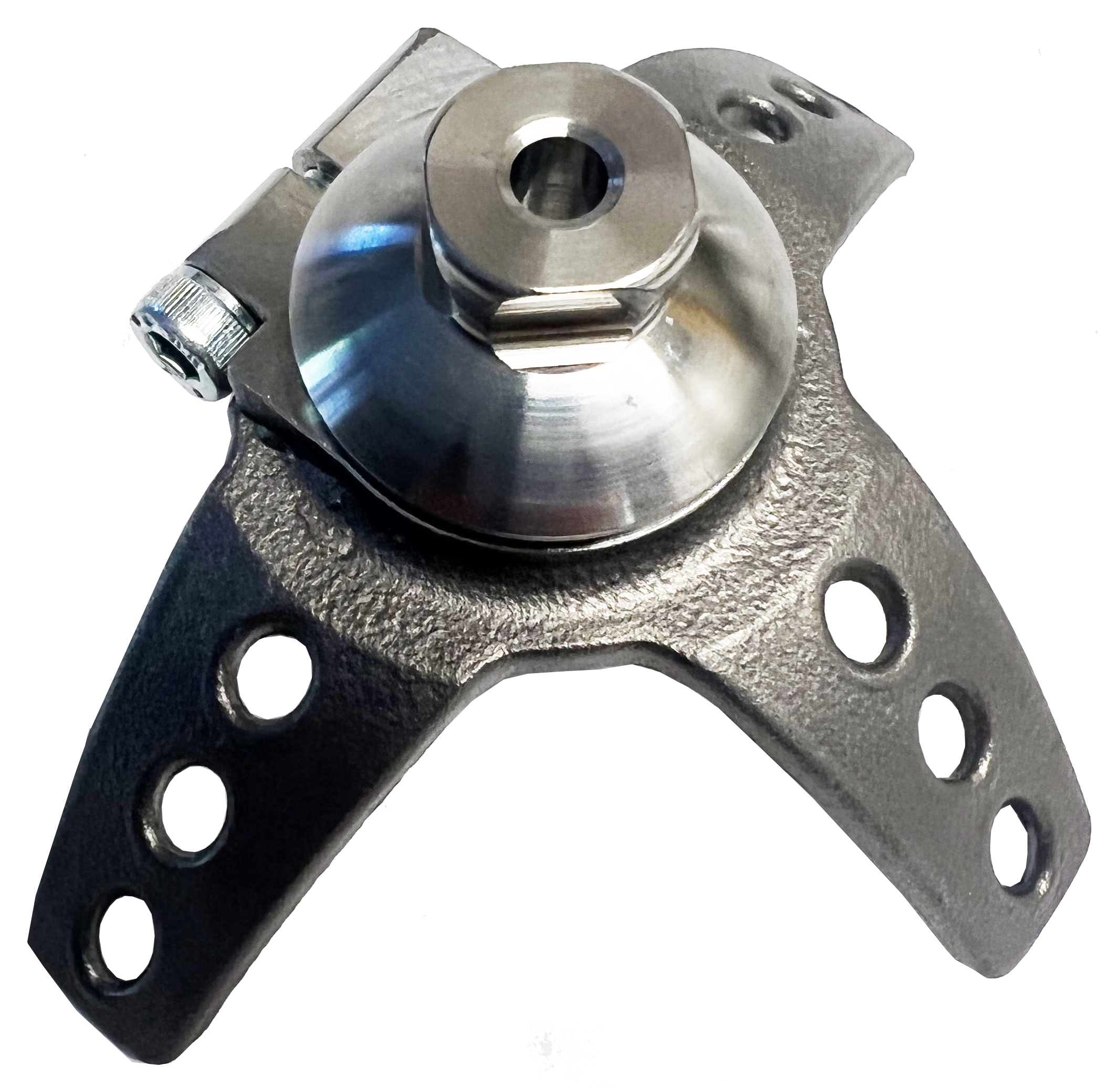

4TC2
Child 3 Arm A/K Lamination Anchor With Rotating Pyramid
For both A / K Exoskelatal Socket or Thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
108gr |
80kg/175lbs |
20mm |
|
|
 |

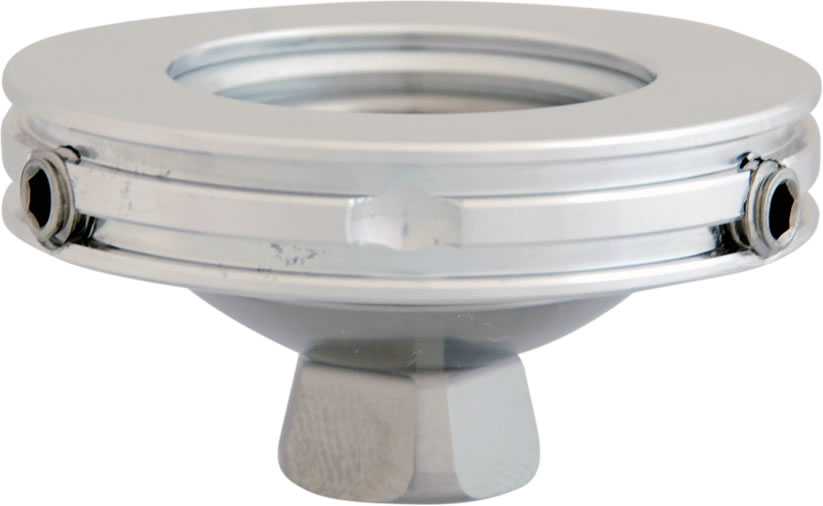

4TC5
Child Lamination RIM With Rotating Pyramid
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
66gr |
80kg/175lbs |
|
|
 |
4TC6
Child Lamination RIM With Rotating Receiver
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
72gr |
80kg/175lbs |
|
|
 |

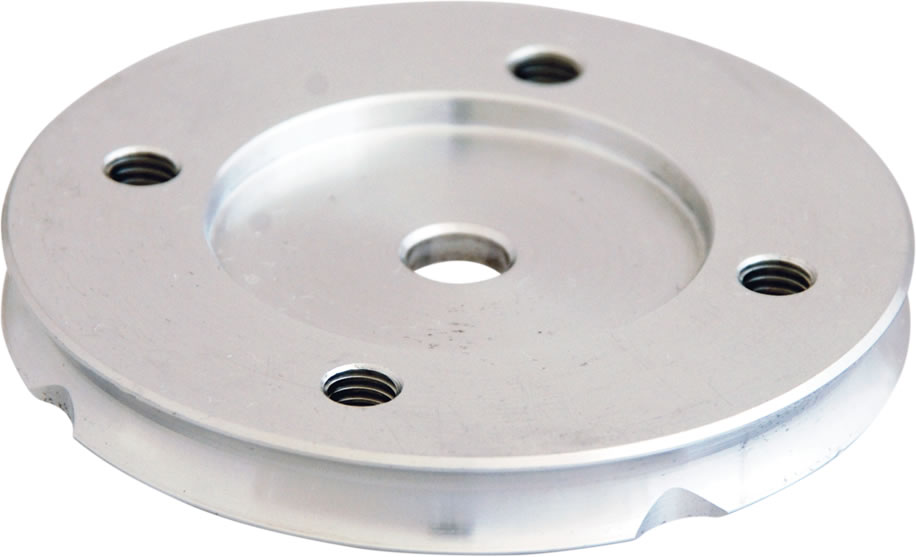

4TC7
Child Connector Plate
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
116gr |
80kg/175lbs |
|
|
