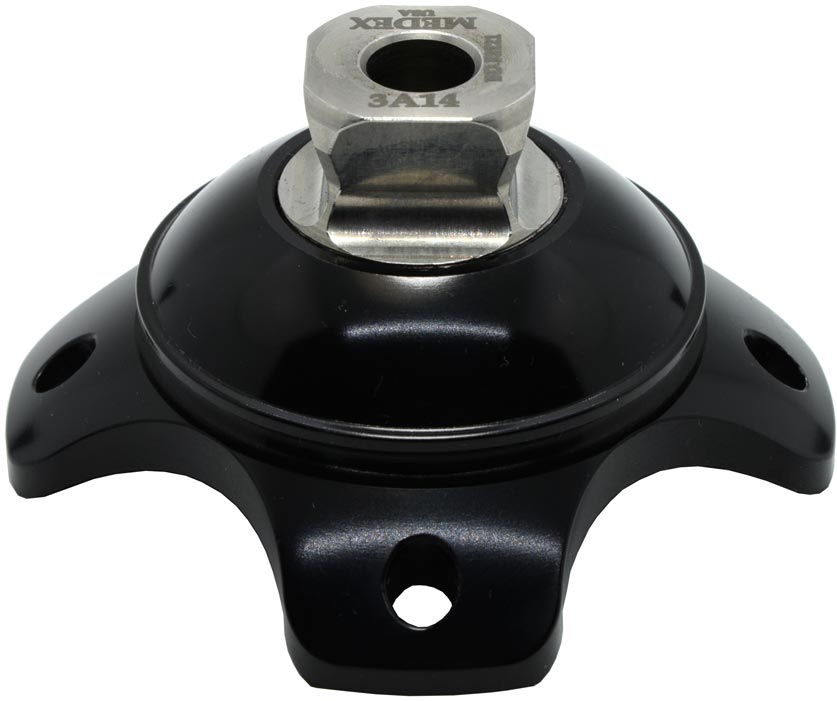

3A14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
52gr |
100kg/220lbs |
9mm |
 Download |
|
|
 |

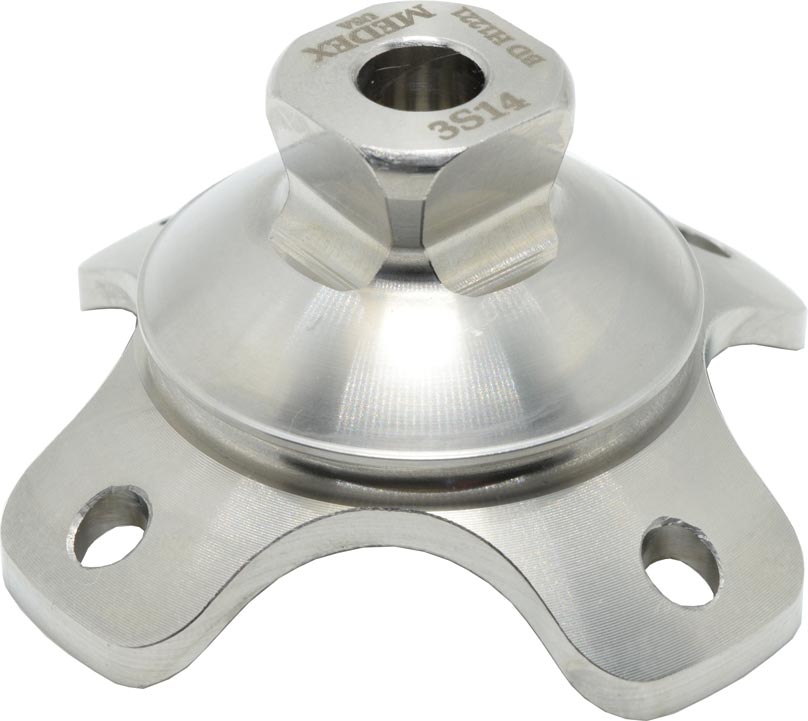

3S14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
107gr |
136kg/300lbs |
9mm |
Download |
|
|
 |

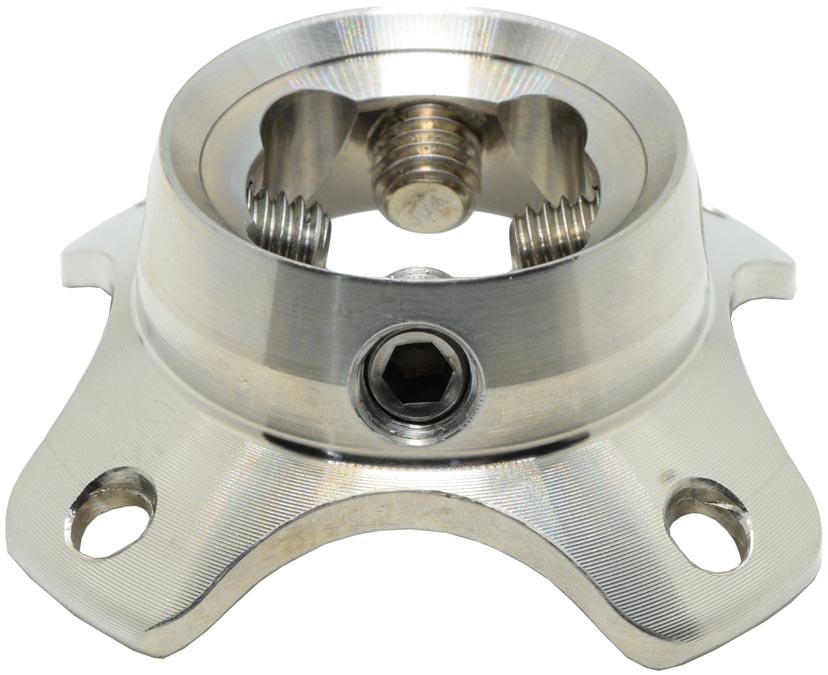

3S17
Receiver With 4 Prongs
Ideal for long stumps. Includes 4 stainless steel angular adjustment screws (flat head).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
92gr |
136kg/300lbs |
14mm |
Download |
|
|
 |
3T13
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
62gr |
136kg/300lbs |
10mm |
Download |
|
|
 |
3T14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
52gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
3T15
Rotating Pyramid With 4 Prongs
A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustment. 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
92gr |
136kg/300lbs |
19mm |
Download |
|
|
 |
3T16
Rotating Receiver With 4 Prongs
A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustments.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
101gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
3T17
Receiver With 4 Prongs
Ideal for long stumps. Includes 4 stainless steel angular adjustment screws (flat head).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
56gr |
136kg/300lbs |
14mm |
Download |
|
|
 |
4T28
4 Prong Combination Shuttle Lock
Unique design combines many features needed for B/K and light-weight A/K cases. It eliminates the need for an inner socket retainer block, saves space on the length of the pylon and enables rotation adjustment. Dummy (included) makes for easy lamination. Product weights include pin and all other features except dummy.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
147gr |
136kg/300lbs |
38mm |
|
|
