4A20
RIM System Shuttle Lock with 1.5" pin
Integrated rotatable pyramid with corrosion resistant stainless steel pin and locking mechanism in Delrin housing. Includes 3 lamination dummy screws. Waterproof.
| Alloy |
Weight |
Max Patient Weight |
| Aluminum |
160gr |
136kg/300lbs |
|
|
 |

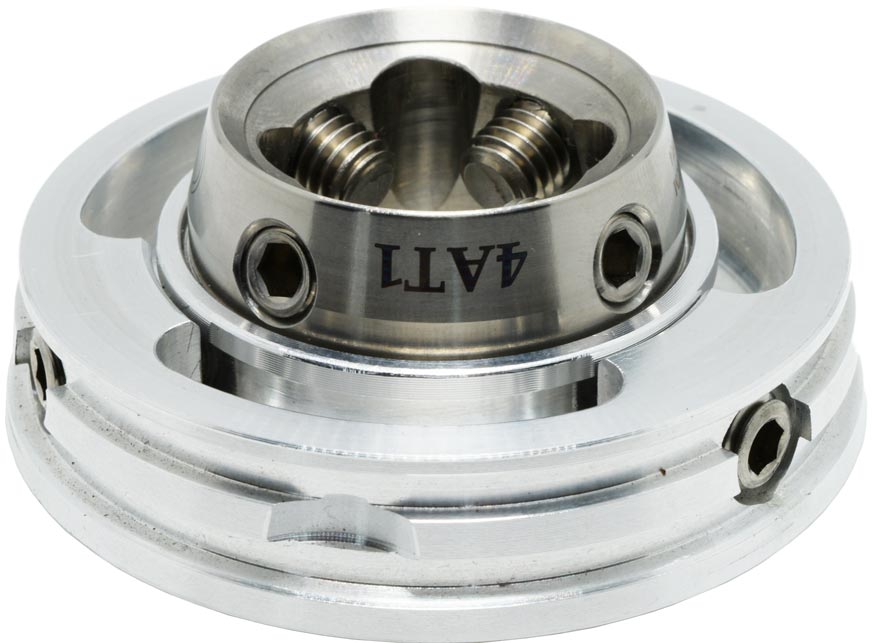

4AT1
Lamination RIM With Rotating Receiver
70mm RIM with Rotatable Pyramid Receiver. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
117gr |
136kg/300lbs |
27mm |
|
|
 |

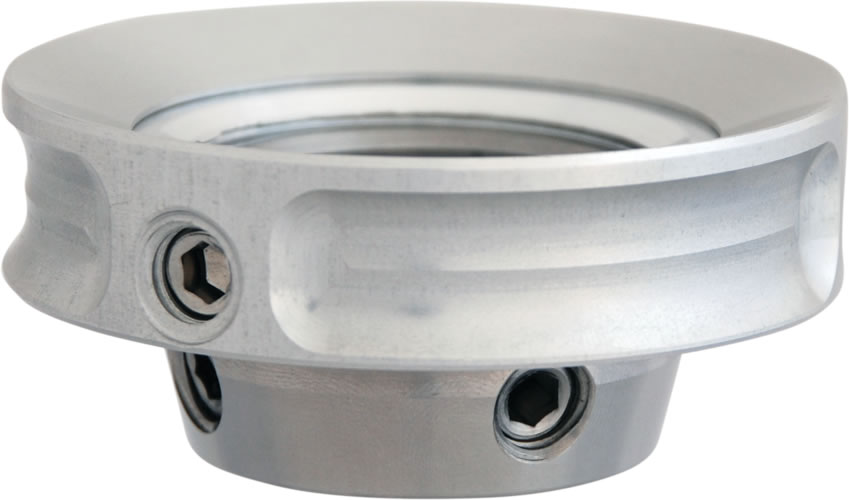

4AT2
Lamination RIM With Rotating Receiver
63mm RIM with Rotatable Pyramid Receiver. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
99gr |
136kg/300lbs |
26mm |
|
|
 |

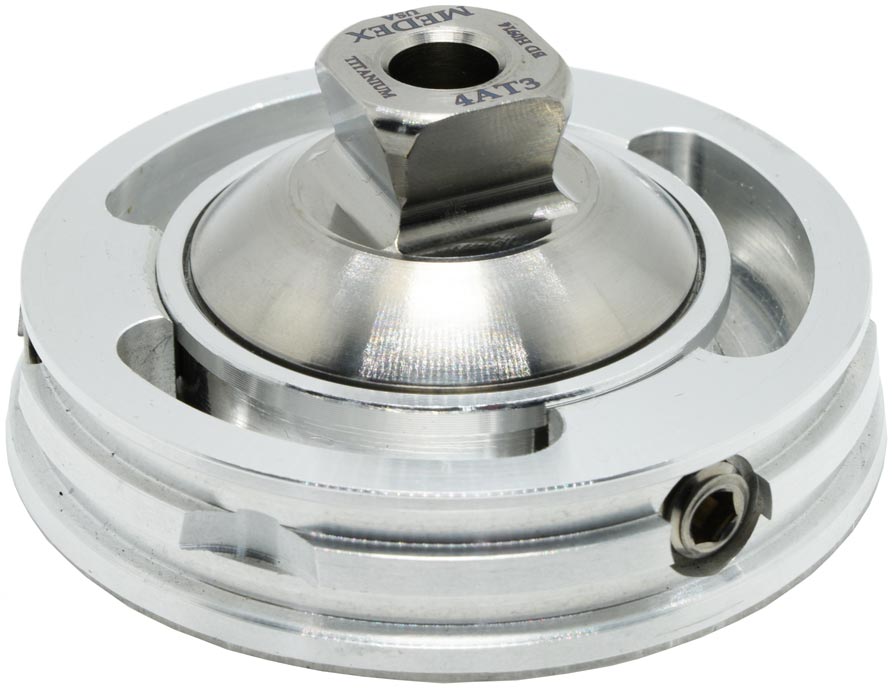

4AT3
Lamination RIM With Rotating Pyramid
70mm RIM with Rotatable Pyramid. Includes 3 lamination dummy screws and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
122gr |
136kg/300lbs |
23mm |
|
|
 |

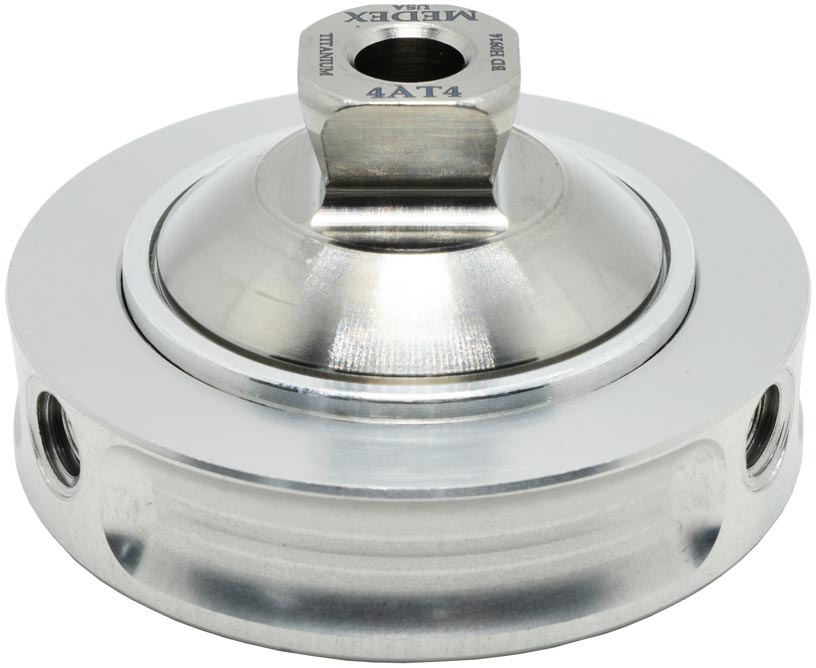

4AT4
Lamination RIM With Rotating Pyramid
63mm RIM with Rotatable Pyramid. Includes 3 lamination dummy screws and 3 M8x6 stainless steel set screws. 63mm RIM will help the distal end of the socket to form better around thin stumps allowing a better formed socket shape.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
93gr |
136kg/300lbs |
22mm |
|
|
 |

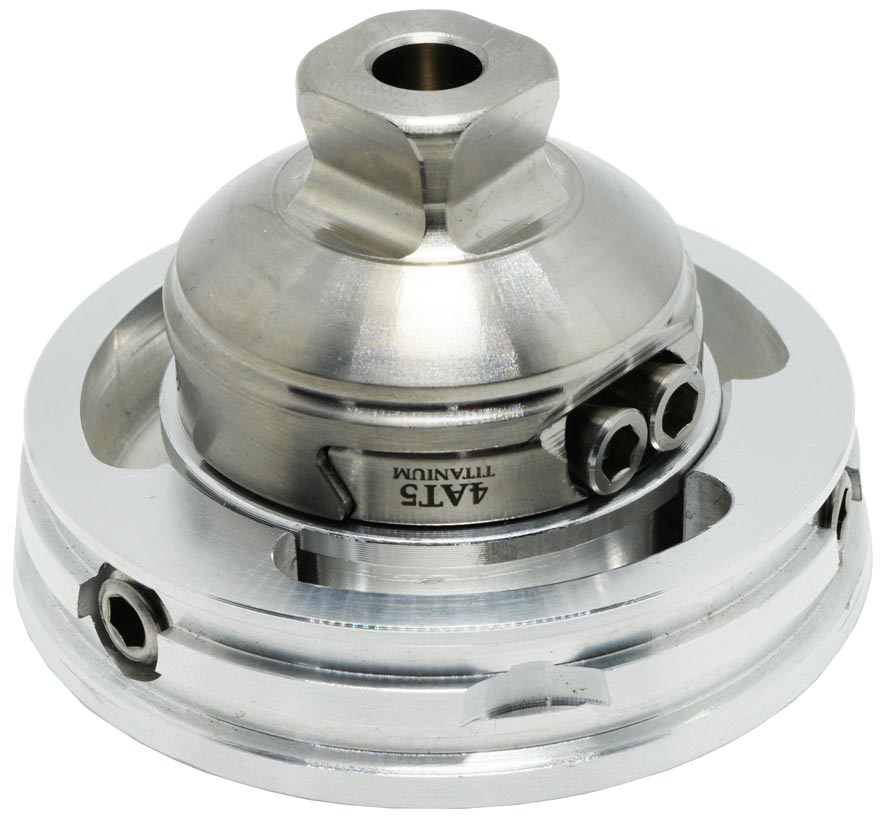

4AT5
Lamination RIM With Rotating Sliding Pyramid
70mm RIM and Rotatable Pyramid with Slide. Includes 3 lamination dummy screws and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
197gr |
136kg/300lbs |
34mm |
|
|
 |

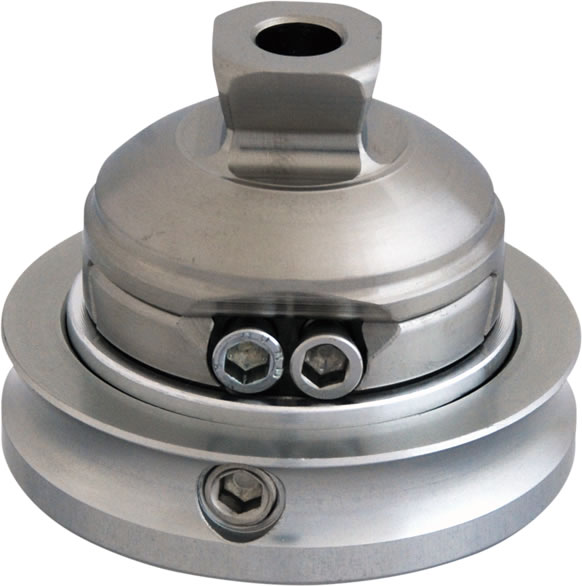

4AT6
Lamination RIM With Rotating Sliding Pyramid
63mm RIM and Rotatable Pyramid with Slide. Includes 3 lamination dummy screws and 3 M8x6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
183gr |
136kg/300lbs |
33mm |
|
|
 |

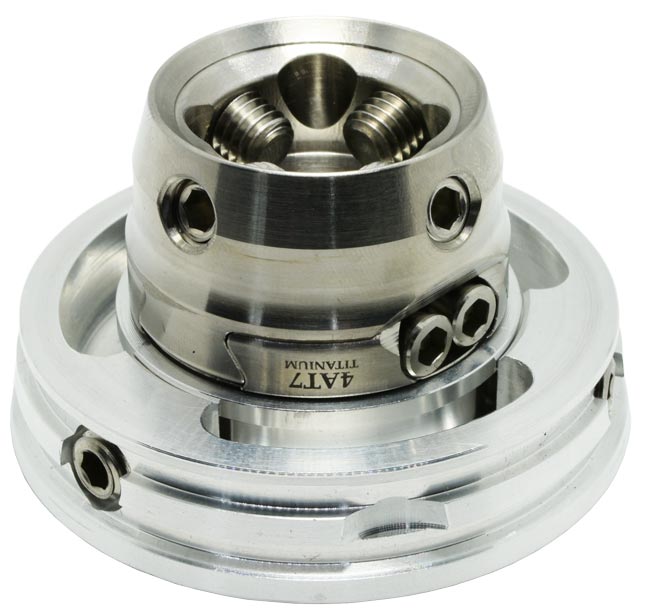

4AT7
Lamination RIM With Rotating Sliding Receiver
70mm RIM and Rotatable Pyramid Receiver with Slide. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
196gr |
136kg/300lbs |
43mm |
|
|
 |

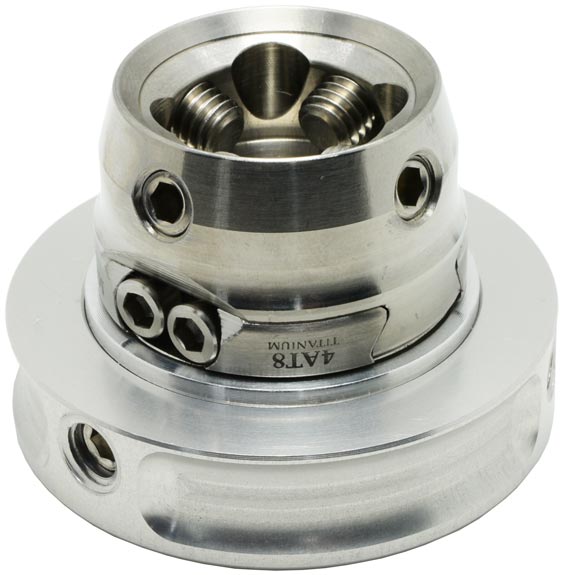

4AT8
Lamination RIM With Rotating Sliding Receiver
63mm RIM and Rotatable Pyramid Receiver with Slide. Includes 3 lamination dummy screws 4 M8x12 and 3 M8X6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
178gr |
136kg/300lbs |
42mm |
|
|
 |
4T20
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 70mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
200gr |
136kg/300lbs |
38mm |
|
|
 |
4T21
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 63mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
181gr |
136kg/300lbs |
37mm |
|
|
