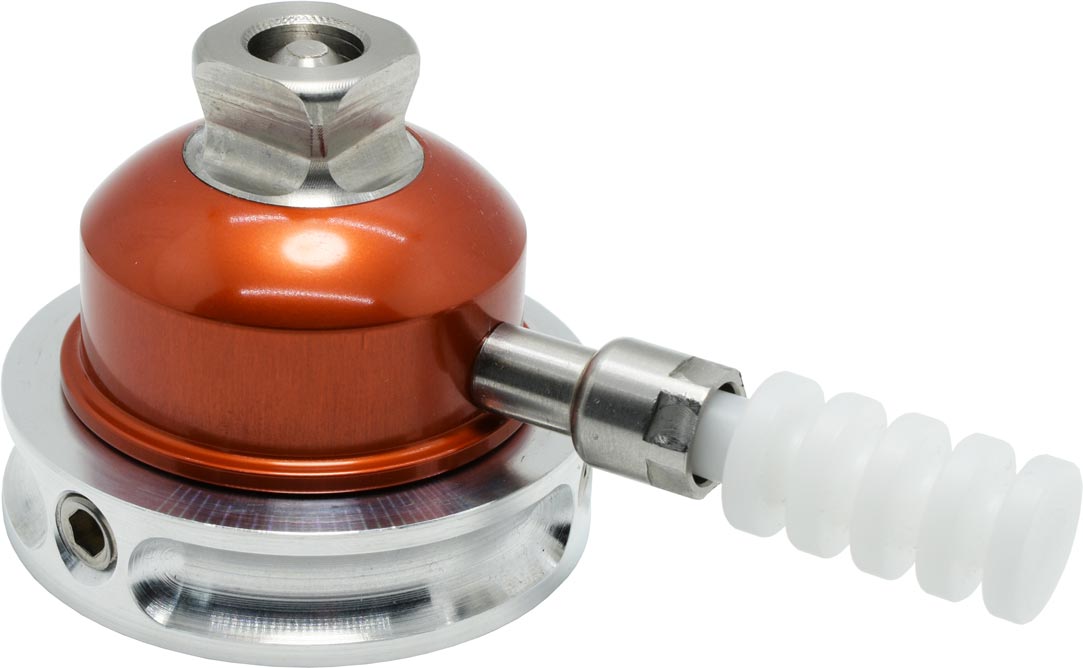

4A20
RIM System Shuttle Lock with 1.5" pin
Integrated rotatable pyramid with corrosion resistant stainless steel pin and locking mechanism in Delrin housing. Includes 3 lamination dummy screws. Waterproof.
| Alloy |
Weight |
Max Patient Weight |
| Aluminum |
160gr |
136kg/300lbs |
|
|
 |

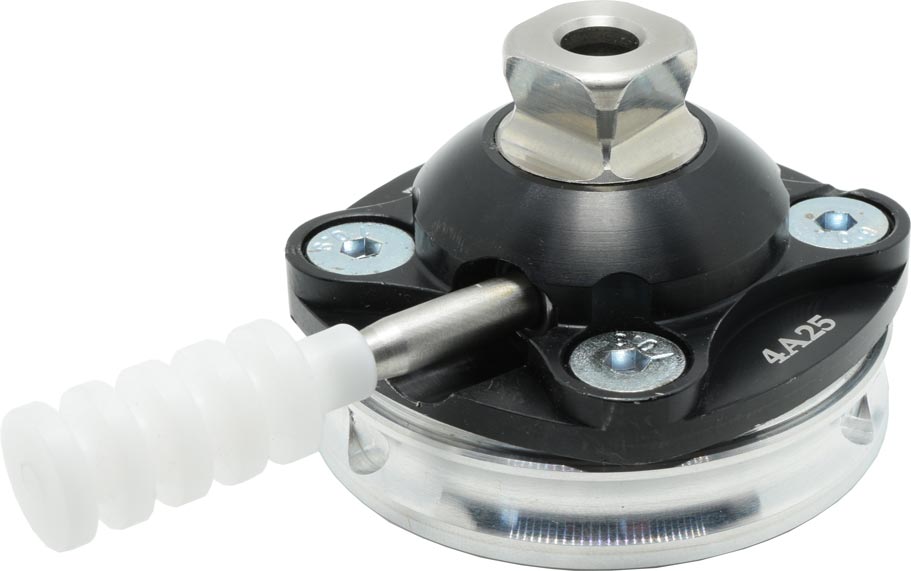

4A25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Aluminum body with titanium pyramid, adjustable release button. Locking mechanism is placed inside the pyramid dome. Build height is 29mm and the weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
99gr |
100kg/220lbs |
29mm |
|
|
 |

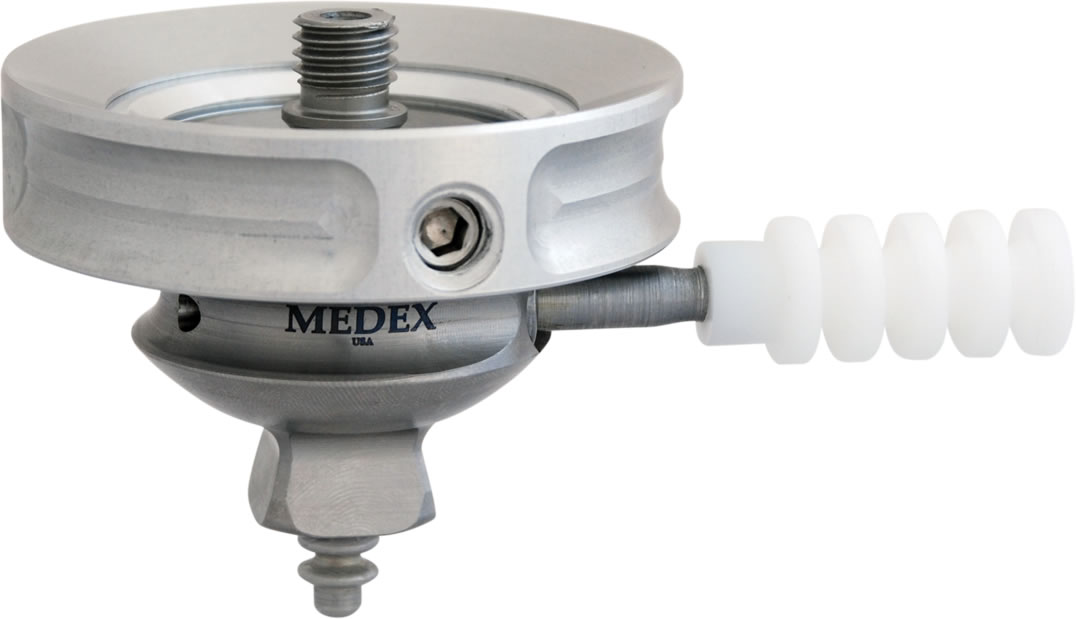

4T20
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 70mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
200gr |
136kg/300lbs |
38mm |
|
|
 |

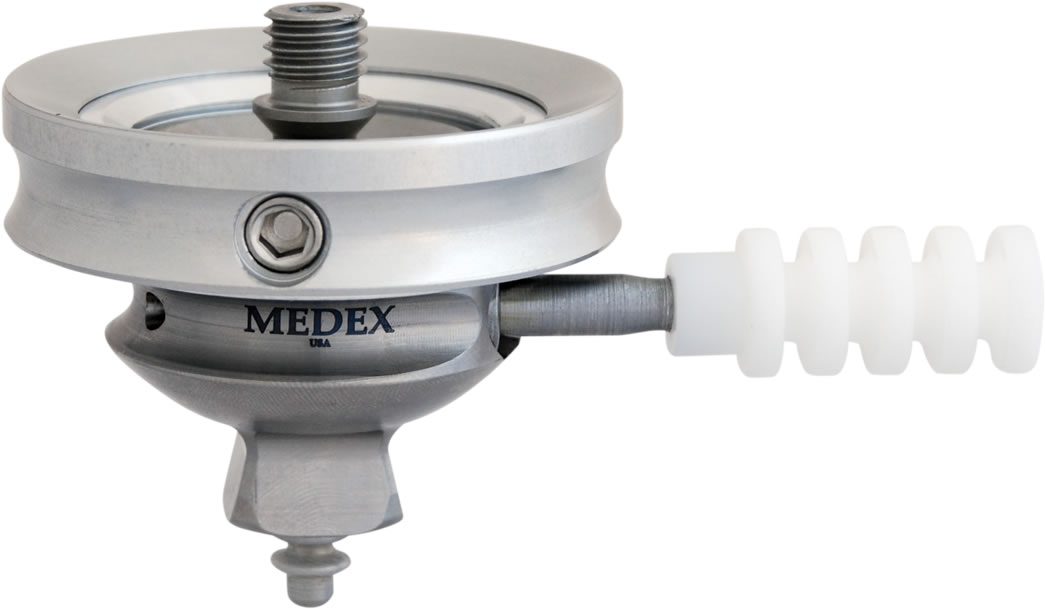

4T21
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 63mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
181gr |
136kg/300lbs |
37mm |
|
|
 |

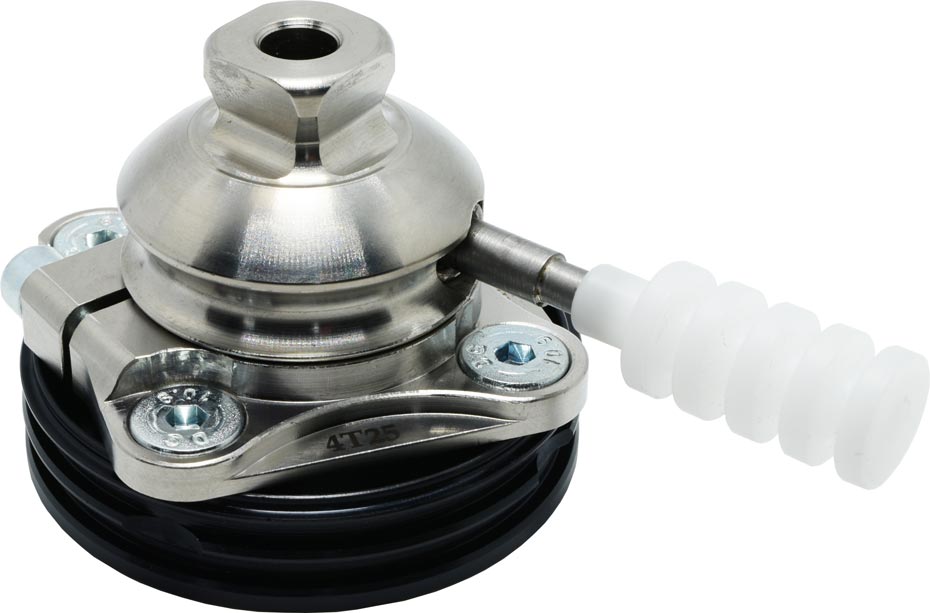

4T25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Includes titanium body with titanium pyramid, adjustable release button and 4 hole frame with threaded rotation. Locking mechanism is placed inside the pyramid dome reducing build height to 32mm. Weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
184gr |
136kg/300lbs |
32mm |
|
|
 |

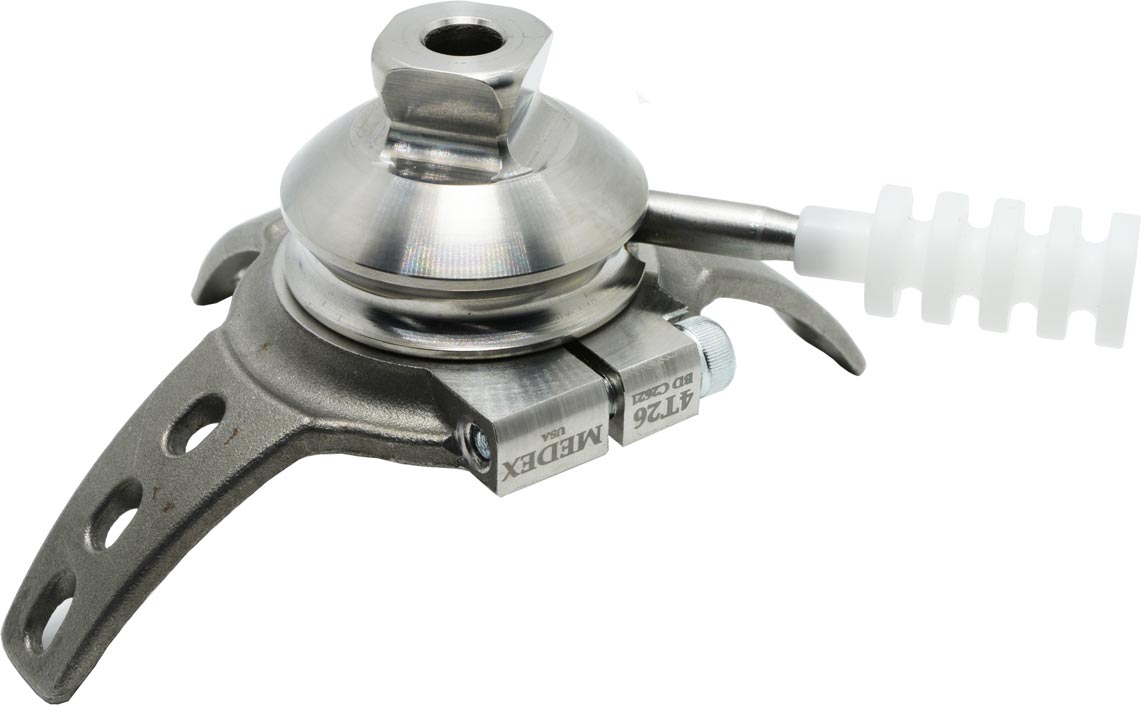

4T26
Screw Thread Shuttle Lock
For A/K or heavy use B/K situations, these shuttle locks are mounted on 3 arm stainless steel lamination anchors. The product weights listed include the anchor and pin.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
220gr |
136kg/300lbs |
27mm |
|
|
 |

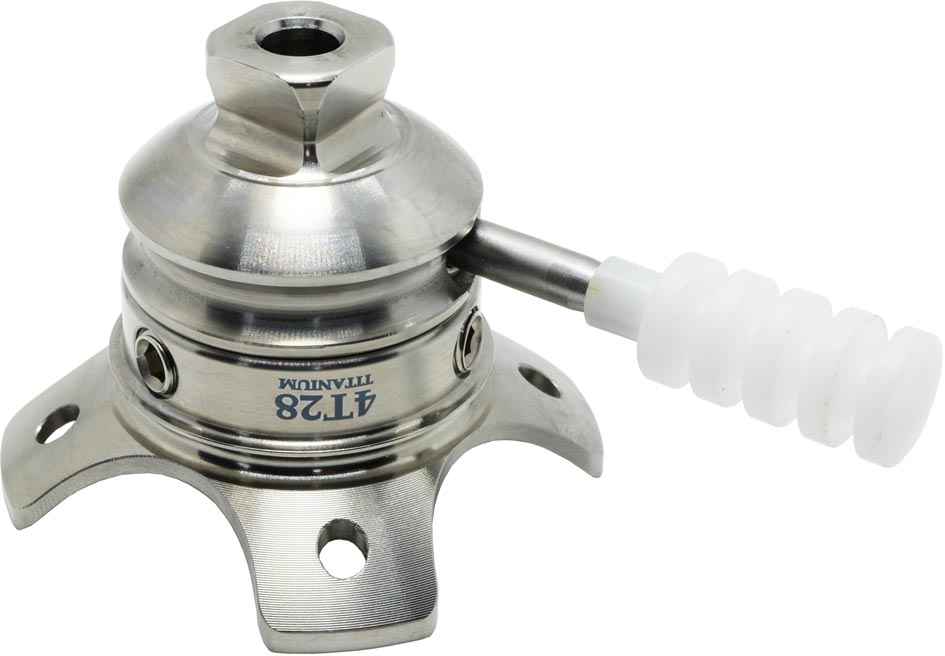

4T28
4 Prong Combination Shuttle Lock
Unique design combines many features needed for B/K and light-weight A/K cases. It eliminates the need for an inner socket retainer block, saves space on the length of the pylon and enables rotation adjustment. Dummy (included) makes for easy lamination. Product weights include pin and all other features except dummy.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
147gr |
136kg/300lbs |
38mm |
|
|
