3A50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
65gr |
100kg/220lbs |
32mm |
 Download |
|
|
 |

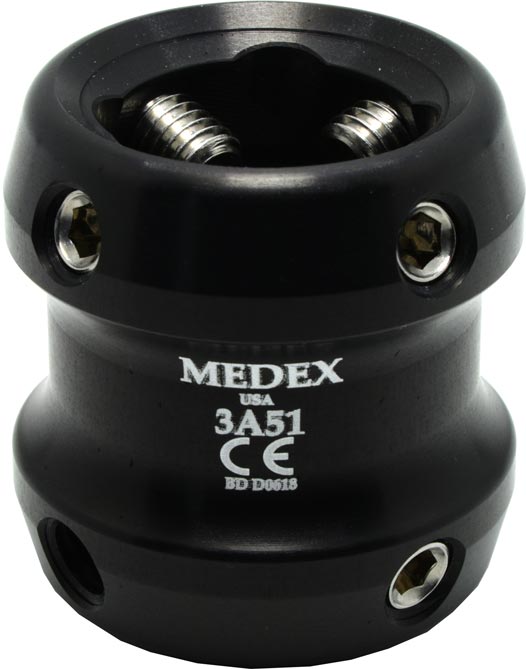

3A51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
80gr |
100kg/220lbs |
45mm |
Download |
|
|
 |
3A52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
94gr |
100kg/220lbs |
60mm |
Download |
|
|
 |
3A53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
112gr |
100kg/220lbs |
75mm |
Download |
|
|
 |
3S50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
135gr |
136kg/300lbs |
32mm |
Download |
|
|
 |
3S51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
156gr |
136kg/300lbs |
45mm |
Download |
|
|
 |

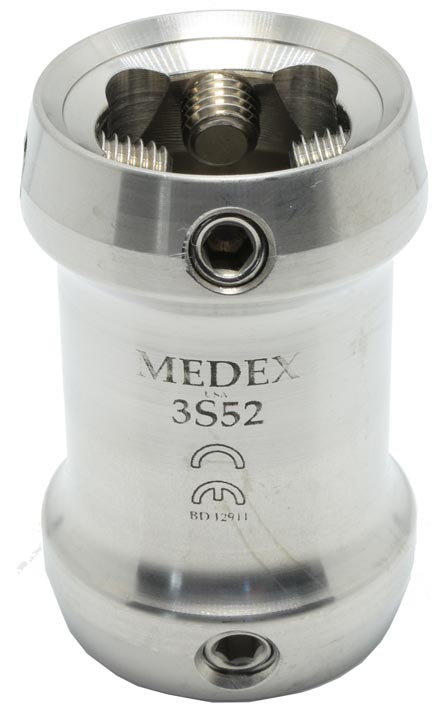

3S52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
179gr |
136kg/300lbs |
60mm |
Download |
|
|
 |

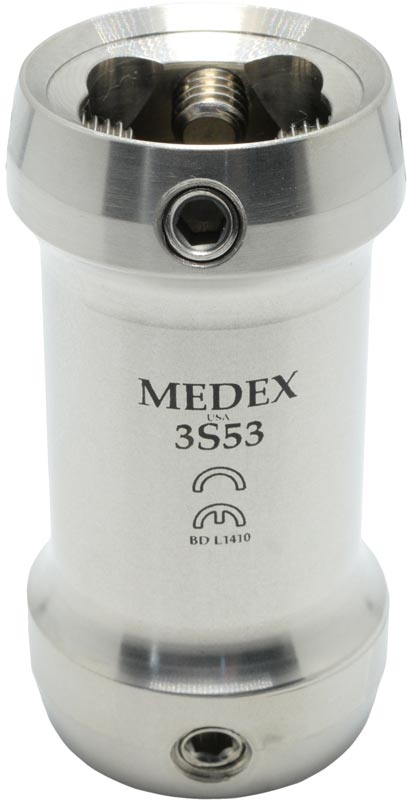

3S53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
197gr |
136kg/300lbs |
75mm |
Download |
|
|
 |

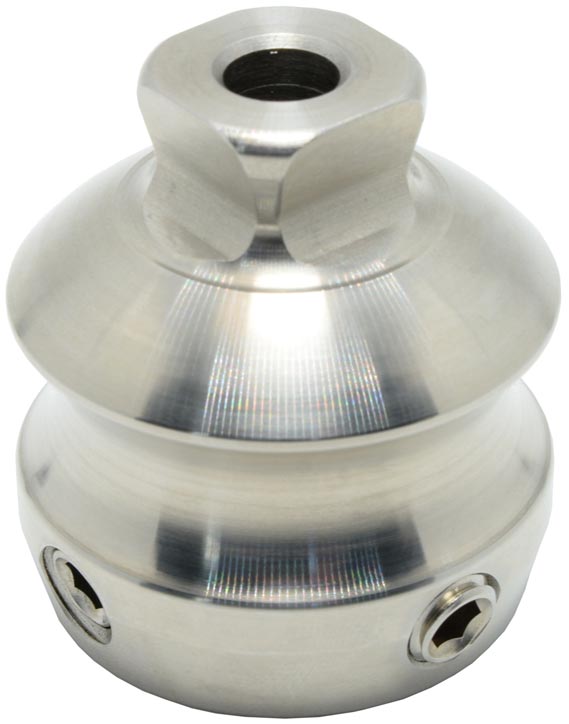

3S60
Double Head Receiver and Pyramid
For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
124gr |
136kg/300lbs |
32mm |
Download |
|
|
 |

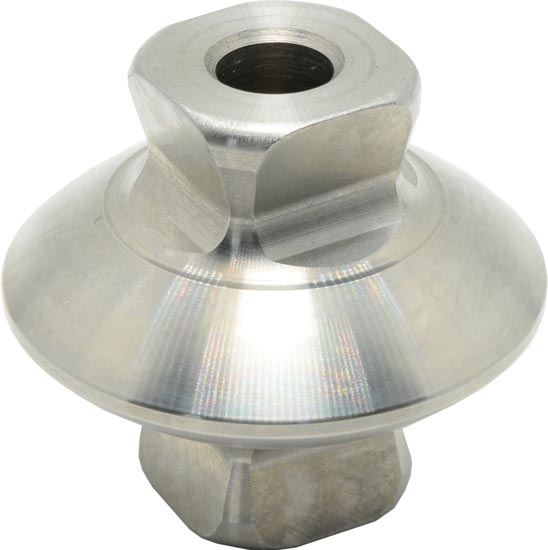

3S70
Double Head Pyramid
Connector between receivers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
109gr |
136kg/300lbs |
13mm |
Download |
|
|
 |

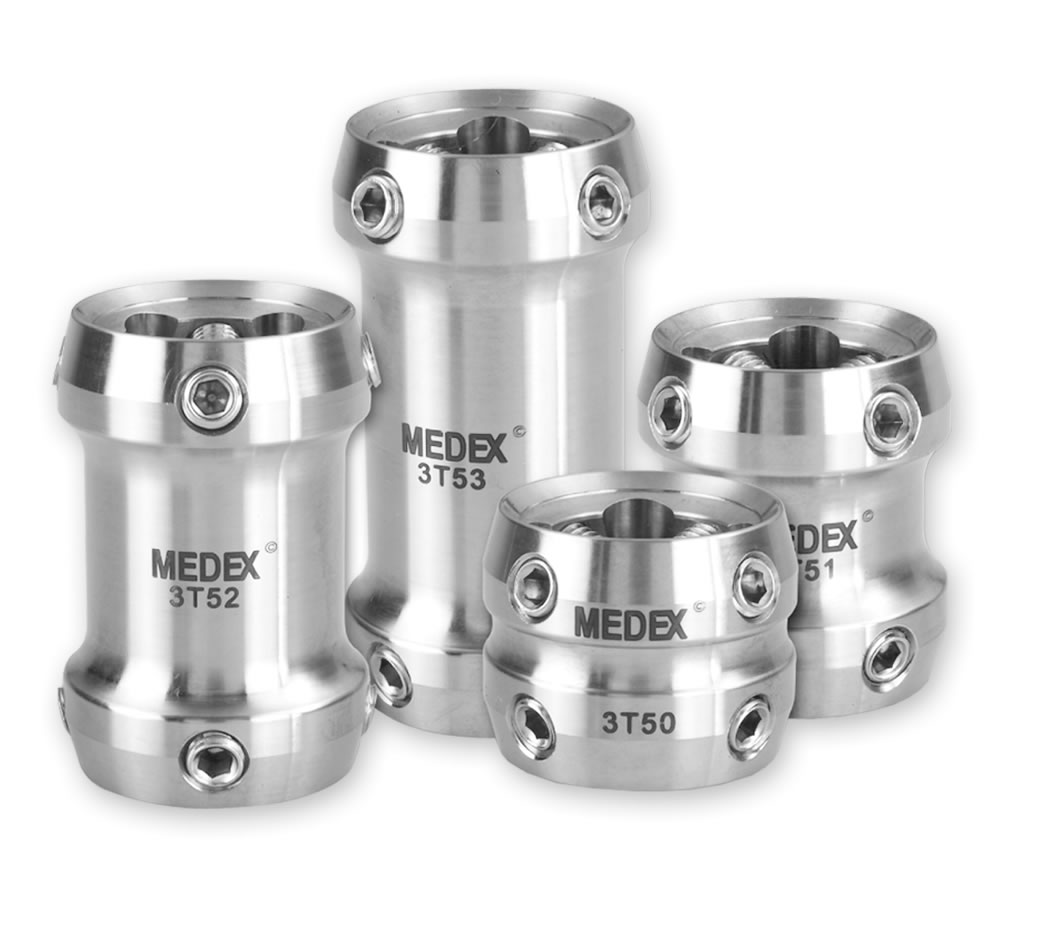

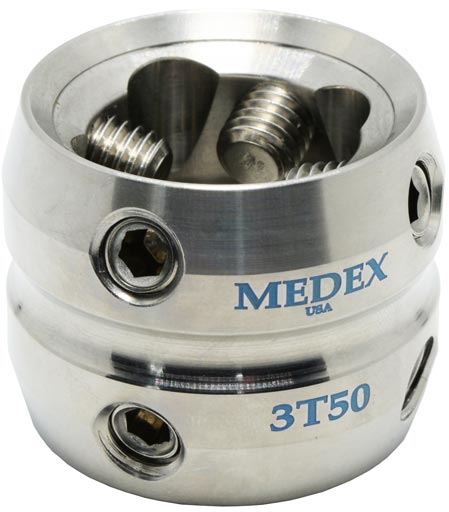

3T50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
88gr |
136kg/300lbs |
32mm |
Download |
|
|
 |

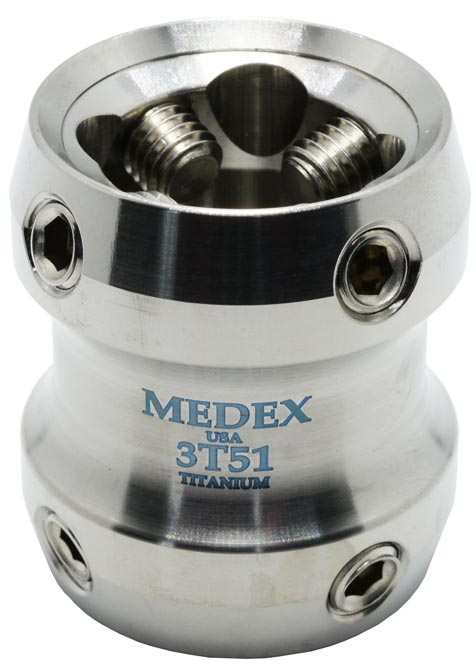

3T51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
98gr |
136kg/300lbs |
45mm |
Download |
|
|
 |

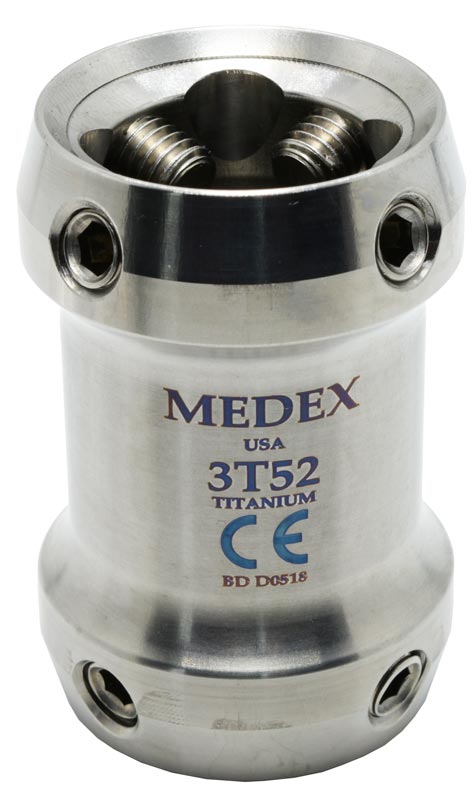

3T52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
110gr |
136kg/300lbs |
60mm |
Download |
|
|
 |
3T53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
120gr |
136kg/300lbs |
75mm |
Download |
|
|
 |

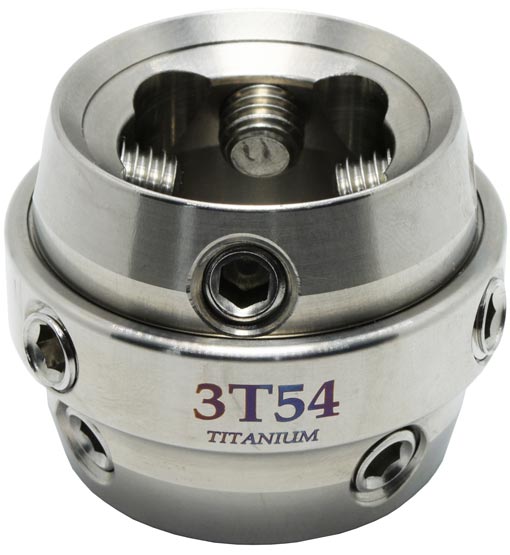

3T54
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
114gr |
136kg/300lbs |
34mm |
Download |
|
|
 |

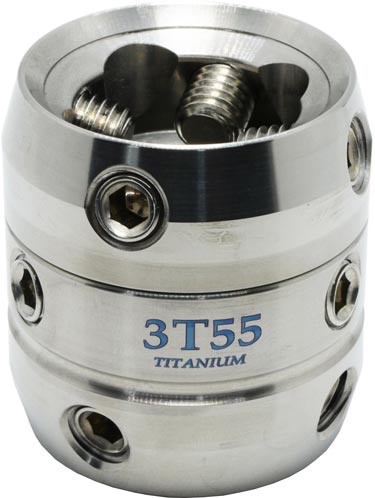

3T55
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
129gr |
136kg/300lbs |
42mm |
Download |
|
|
 |

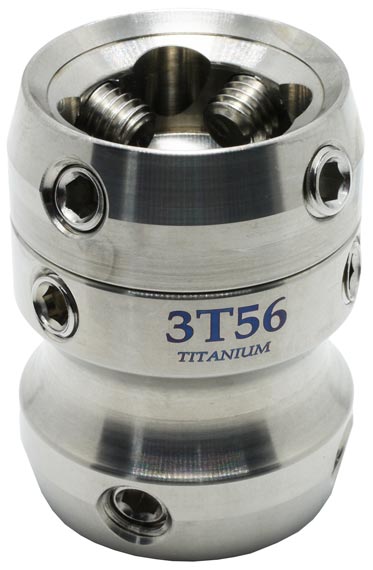

3T56
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
143gr |
136kg/300lbs |
53mm |
Download |
|
|
 |

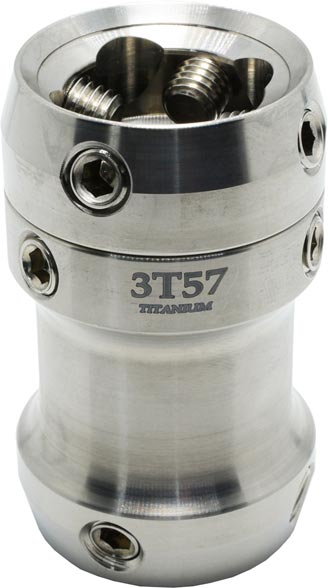

3T57
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
156gr |
136kg/300lbs |
66mm |
Download |
|
|
 |

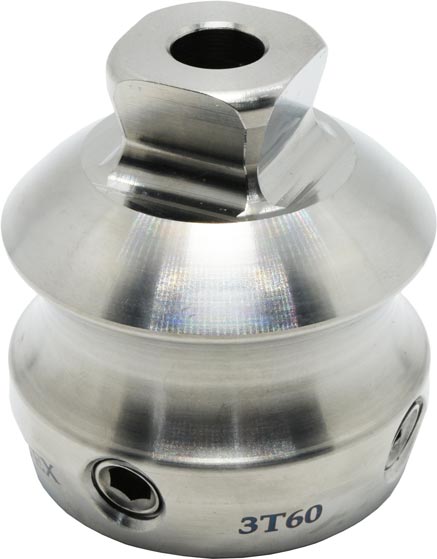

3T60
Double Head Receiver and Pyramid
For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
76gr |
136kg/300lbs |
32mm |
Download |
|
|
 |

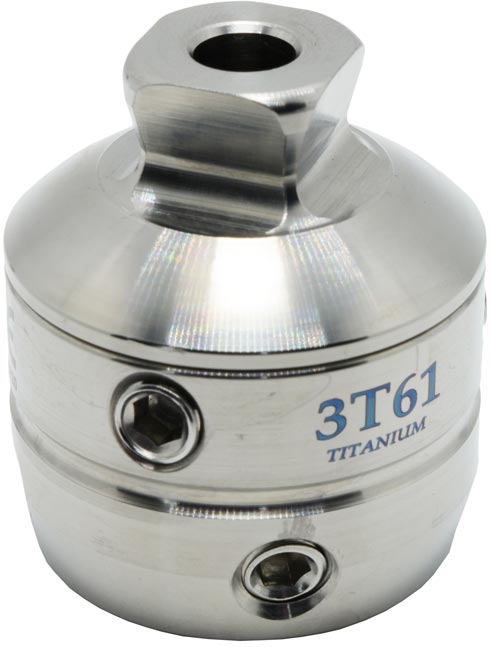

3T61
Double Head Rotating Receiver & Pyramid
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
117gr |
136kg/300lbs |
42mm |
Download |
|
|
 |

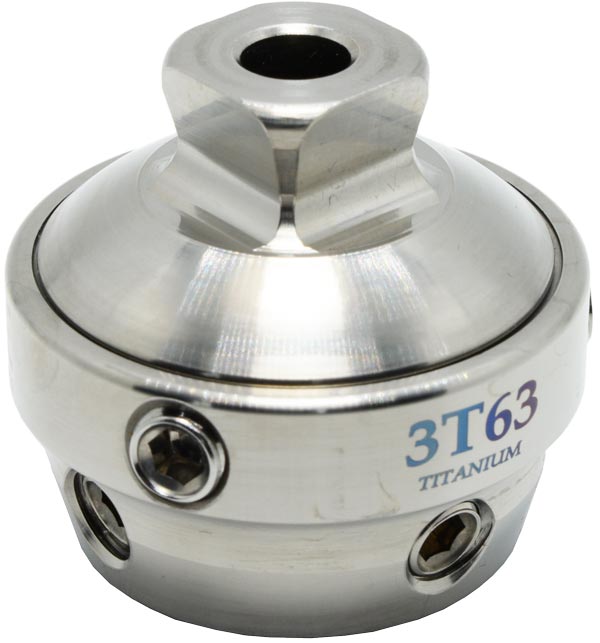

3T63
Double Head Rotating Receiver & Pyramid
Offering a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using easy-access rotation set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
104gr |
136kg/300lbs |
34mm |
Download |
|
|
 |

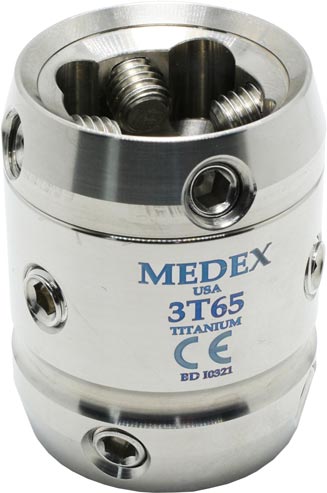

3T65
Double Head Rotating Receiver With Height Adjustment
With an overall height in the shortest position at 50mm, this adapter allows the practitioner to set a custom height.
| Alloy |
Weight |
Max Patient Weight |
Build Height (MIN) |
Build Height (MAX) |
Manual |
| Titanium |
158gr |
136kg/300lbs |
51mm |
57mm |
Download |
|
|
 |

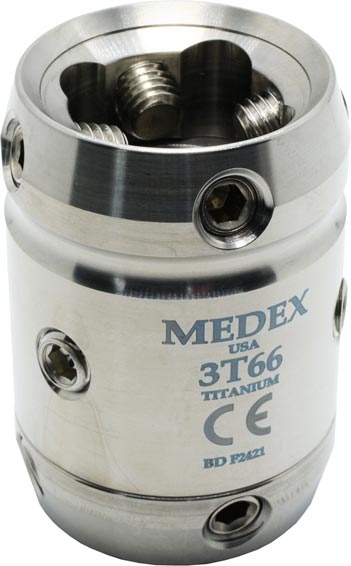

3T66
Double Head Rotating Receiver With Height Adjustment
With an overall height in the shortest position at 58mm, this adapter allows the practitioner to set a custom height.
| Alloy |
Weight |
Max Patient Weight |
Build Height (MIN) |
Build Height (MAX) |
Manual |
| Titanium |
172gr |
136kg/300lbs |
57mm |
61mm |
Download |
|
|
 |

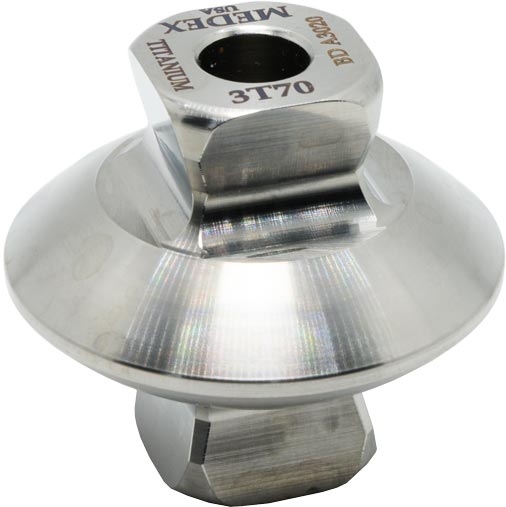

3T70
Double Head Pyramid
Connector between receivers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
13mm |
Download |
|
|
 |

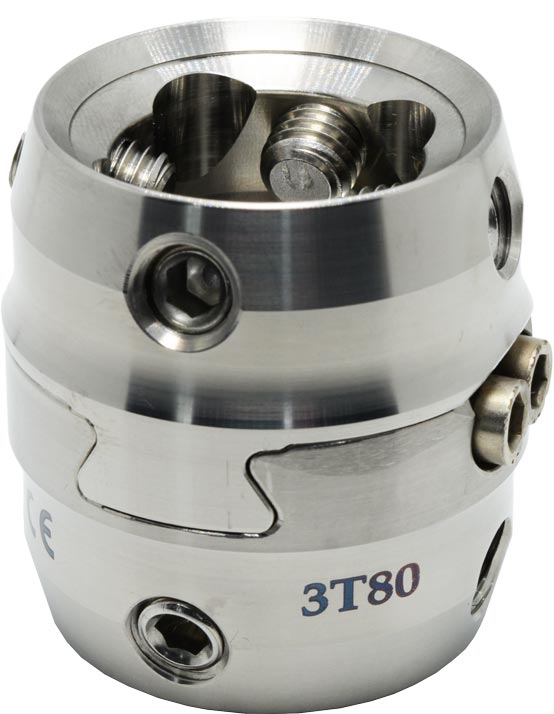

3T80
Double Head Sliding Receiver
Both end receiver. Slides in either direction, allowing for custom lateral offset.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
43mm |
Download |
|
|
 |

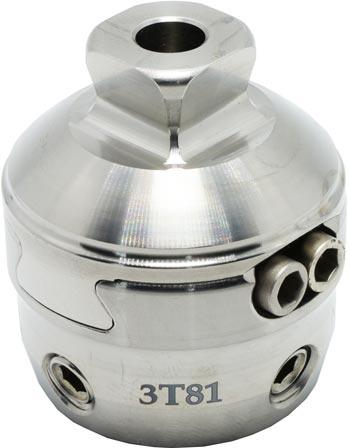

3T81
Double Head Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
35mm |
Download |
|
|
 |

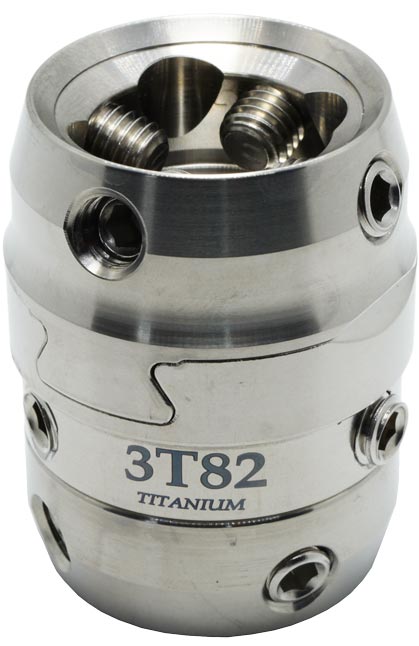

3T82
Double Head Rotating Sliding Receiver
Both end pyramid receiver with slide and rotation and an overall height of 52mm. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
192gr |
136kg/300lbs |
52mm |
Download |
|
|
 |

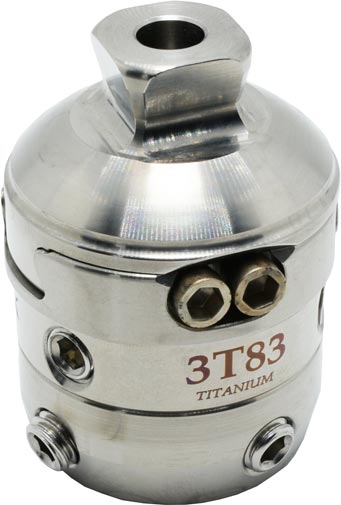

3T83
Double Head Rotating Sliding Pyramid
Rotatable pyramid on one end and receiver on the other with an overall height of 47mm. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
193gr |
136kg/300lbs |
47mm |
Download |
|
|
 |

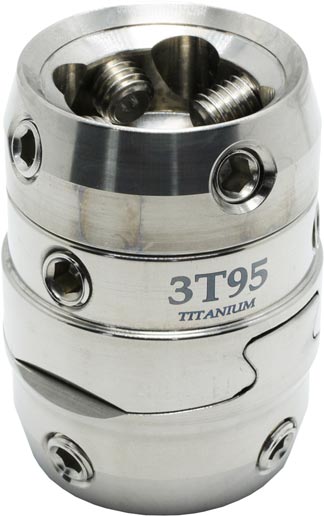

3T95
Double Head Rotating Sliding Receiver
Both end pyramid receiver with slide and rotation and an overall height of 55mm. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
192gr |
136kg/300lbs |
55mm |
Download |
|
|
 |

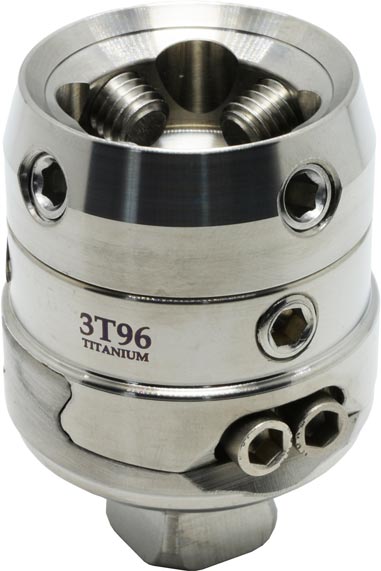

3T96
Double Head Rotating Sliding Pyramid
Rotatable pyramid on one end and receiver on the other with an overall height of 48mm. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
193gr |
136kg/300lbs |
48mm |
Download |
|
|
 |

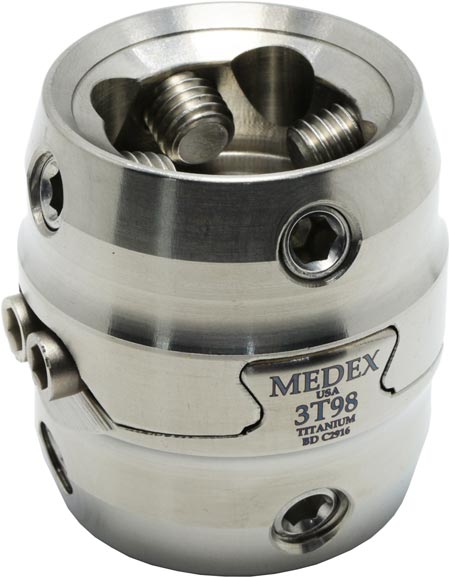

3T98
Double Head Sliding Receiver
Both end receiver. Arched dovetail design (3T98) provides adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed. Overall height 44mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
44mm |
Download |
|
|
 |

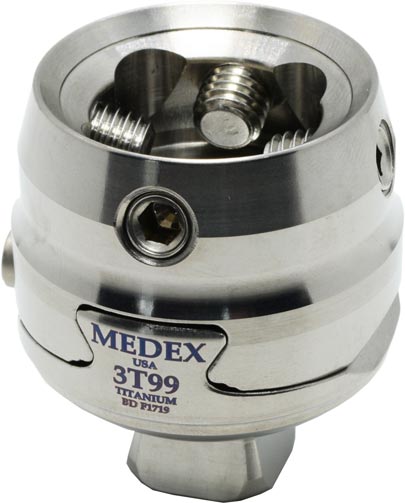

3T99
Double Head Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Arched dovetail design (3T99) offers adjustable angles, increasing lateral offset capability based on the pylon length. Overall height of 37mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
37mm |
Download |
|
|
