3A10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
51gr |
100kg/220lbs |
12mm |
 Download |
|
|
 |
3A18
Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
99gr |
100kg/220lbs |
17mm |
Download |
|
|
 |

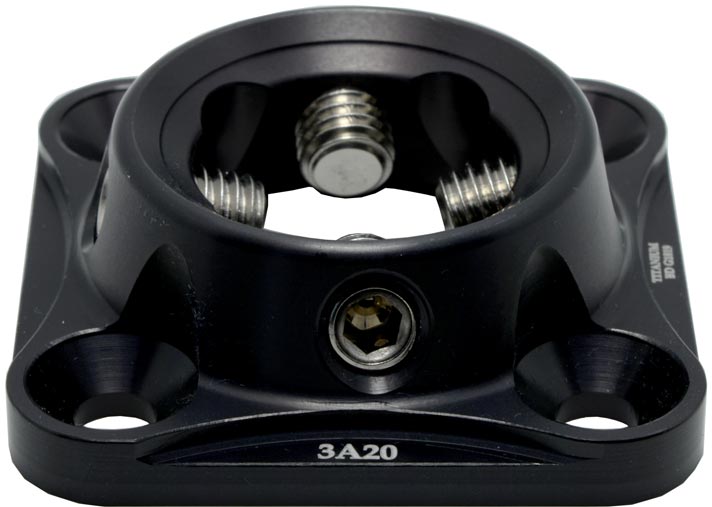

3A20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
40gr |
100kg/220lbs |
17mm |
Download |
|
|
 |
3A23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
74gr |
100kg/220lbs |
21mm |
Download |
|
|
 |
3S10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
84gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3S11
Pyramid With 4 Holes & Axial Offset
Connector between socket and pylon with pyramid set 8mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
108gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3S12
Pyramid With 4 Holes & Diagonal Offset
Connector between socket and pylon with pyramid set 5mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
108gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3S18
Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
124gr |
136kg/300lbs |
17mm |
|
|
|
3S20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
102gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3S23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
130gr |
136kg/300lbs |
21mm |
|
|
 |
3T09
Pyramid With 4 Holes
Connector between socket and pylon, 10mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
46gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
50gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T11
Pyramid With 4 Holes & Axial Offset
Connector between socket and pylon with pyramid set 8mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T12
Pyramid With 4 Holes & Diagonal Offset
Connector between socket and pylon with pyramid set 5mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T18
Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
71gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T19
Rotating Pyramid With 4 Holes
Center hole 10mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
71gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
65gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
80gr |
136kg/300lbs |
21mm |
Download |
|
|
 |
3T24
Rotatable pyramid adapter with 4 holes diagonal offset
Socket to pylon connector with threaded rotation.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
109gr |
136kg/300lbs |
Download |
|
|
 |
3T25
Rotatable pyramid adapter with 4 holes axial offset
Socket to pylon connector with threaded rotation.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
109gr |
136kg/300lbs |
Download |
|
|
 |
3T26
Rotatable pyramid receiver with 4 holes diagonal offset
Socket to pylon connector with threaded rotation. Single screw rotation set and 4 M8x12 stainless steel angular adjustment socket set screws.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
127gr |
136kg/300lbs |
Download |
|
|
 |
3T27
Rotatable pyramid receiver with 4 holes axial offset
Socket to pylon connector with threaded rotation. Single screw rotation set and 4- M8x12 stainless steel angular adjustment socket set screws.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
127gr |
136kg/300lbs |
Download |
|
|
 |
3T30
Rotating Sliding Pyramid With 4 Holes
Pyramid on one end and 4 hole frame (3T90) on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
154gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
3T31
Rotating Sliding Pyramid With 4 Holes
Pyramid on one end and 4 hole frame (3T90) on the other. Arched dovetail design offers adjustable angles,increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
154gr |
136kg/300lbs |
31mm |
Download |
|
|
 |
3T35
Rotating Sliding Receiver With 4 Holes
Pyramid receiver on one end and 4 hole frame (3T90) on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
152gr |
136kg/300lbs |
37mm |
Download |
|
|
 |
3T36
Rotating Sliding Receiver With 4 Holes
Pyramid receiver on one end and 4 hole frame (3T90) on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
152gr |
136kg/300lbs |
38mm |
Download |
|
|
 |
3T90
4 Hole Rotating Frame Only
An individual 4 hole rotation frame with clamp screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
33gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
4A25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Aluminum body with titanium pyramid, adjustable release button. Locking mechanism is placed inside the pyramid dome. Build height is 29mm and the weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
99gr |
100kg/220lbs |
29mm |
|
|
 |
4T25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Includes titanium body with titanium pyramid, adjustable release button and 4 hole frame with threaded rotation. Locking mechanism is placed inside the pyramid dome reducing build height to 32mm. Weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
184gr |
136kg/300lbs |
32mm |
|
|
