Waterproof Components
- Number of Products: 51
- Sach Foot Adapter
- Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8 (2T09) and M10 (2T/S/A10) bolt, lock washer, and flat washer.
Alloy Weight Max Patient Weight Build Height Titanium 80gr 100kg/220lbs 12mm - Sach Foot Adapter
- Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
Alloy Weight Max Patient Weight Build Height Titanium 93gr 136kg/300lbs 12mm - Sach Foot Adapter (round)
- Includes stainless steel M10 bolt, lock washer, and flat washer. Weight of the component includes stainless steel bolt and washers.
Alloy Weight Max Patient Weight Build Height Titanium 80gr 136kg/300lbs 12mm - Low Profile Pylon with Receiver
- Internally bonded adapter allows the tube clamp to get closer, reducing the length. With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 313gr 136kg/300lbs 400mm
Download - Heavy Duty Pylon With Receiver
- Rated for patients up to 450 lbs. With 4 tilt adjustment set screws and 34mm aluminum alloy tube (400 x 34 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 334gr 205kg/450lbs 400mm Download - Long Pylon With Pyramid

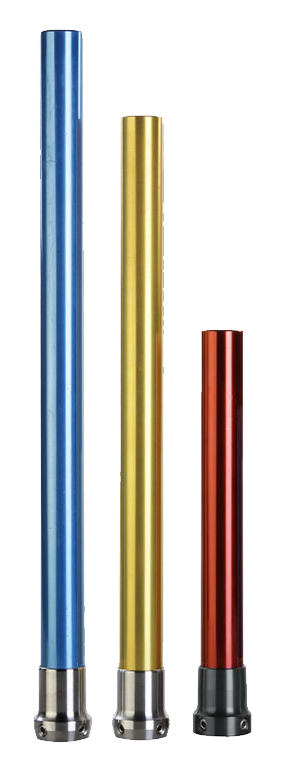

- 30mm anodized aluminum alloy tube with pyramid (400 x 30 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 300gr 136kg/300lbs 400mm Download - Long Pylon With Receiver
- With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 308gr 136kg/300lbs 400mm Download - Short Pylon With Receiver
- With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (250 x 30 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 218gr 136kg/300lbs 250mm Download - Extra Long Pylon With Receiver
- With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (450 x 30 x 2.35mm).
Alloy Weight Max Patient Weight Build Height Manual Titanium 343gr 136kg/300lbs 450mm Download - Tube Clamp Adapter
- For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
Alloy Weight Max Patient Weight Build Height Manual Titanium 70gr 136kg/300lbs 47mm Download - Tube Clamp Adapter (10°)
- For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
Alloy Weight Max Patient Weight Build Height Manual Titanium 78gr 136kg/300lbs 49mm Download - Heavy Duty Tube Clamp Receiver
- Rated for patients up to 450 lbs. For 34mm tube. Includes 4 tilt adjustment screws and rotation set screw.
Alloy Weight Max Patient Weight Build Height Manual Titanium 75gr 205kg/450lbs 47mm Download - Pyramid With 4 Holes

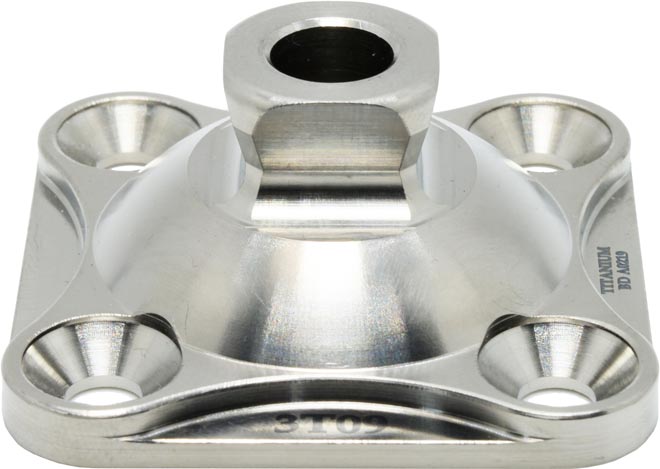

- Connector between socket and pylon, 10mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 46gr 136kg/300lbs 12mm Download - Pyramid With 4 Holes
- Connector between socket and pylon, 8.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 50gr 136kg/300lbs 12mm Download - Pyramid With 4 Holes & Axial Offset
- Connector between socket and pylon with pyramid set 8mm off from axis, 8.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 60gr 136kg/300lbs 12mm Download - Pyramid With 4 Holes & Diagonal Offset
- Connector between socket and pylon with pyramid set 5mm off from axis, 8.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 60gr 136kg/300lbs 12mm Download - Pyramid With 4 Prongs
- Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 62gr 136kg/300lbs 10mm Download - Pyramid With 4 Prongs
- Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 52gr 136kg/300lbs 9mm Download - Rotating Pyramid With 4 Prongs
- A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustment. 8.2mm center hole.
Alloy Weight Max Patient Weight Build Height Manual Titanium 92gr 136kg/300lbs 19mm Download - Rotating Receiver With 4 Prongs
- A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustments.
Alloy Weight Max Patient Weight Build Height Manual Titanium 101gr 136kg/300lbs 28mm Download - Receiver With 4 Prongs
- Ideal for long stumps. Includes 4 stainless steel angular adjustment screws (flat head).
Alloy Weight Max Patient Weight Build Height Manual Titanium 56gr 136kg/300lbs 14mm Download - Rotating Pyramid With 4 Holes
- Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
Alloy Weight Max Patient Weight Build Height Manual Titanium 71gr 136kg/300lbs 17mm Download - Rotating Pyramid With 4 Holes
- Center hole 10mm.
Alloy Weight Max Patient Weight Build Height Manual Titanium 71gr 136kg/300lbs 17mm Download - Receiver With 4 Holes
- Connector between socket and pylon.
Alloy Weight Max Patient Weight Build Height Manual Titanium 65gr 136kg/300lbs 17mm Download - Rotating Receiver With 4 Holes
- Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
Alloy Weight Max Patient Weight Build Height Manual Titanium 80gr 136kg/300lbs 21mm Download - Rotatable pyramid adapter with 4 holes diagonal offset
- Socket to pylon connector with threaded rotation.
Alloy Weight Max Patient Weight Manual Titanium 109gr 136kg/300lbs Download - Rotatable pyramid adapter with 4 holes axial offset
- Socket to pylon connector with threaded rotation.
Alloy Weight Max Patient Weight Manual Titanium 109gr 136kg/300lbs Download - Rotatable pyramid receiver with 4 holes diagonal offset
- Socket to pylon connector with threaded rotation. Single screw rotation set and 4 M8x12 stainless steel angular adjustment socket set screws.
Alloy Weight Max Patient Weight Manual Titanium 127gr 136kg/300lbs Download - Rotatable pyramid receiver with 4 holes axial offset
- Socket to pylon connector with threaded rotation. Single screw rotation set and 4- M8x12 stainless steel angular adjustment socket set screws.
Alloy Weight Max Patient Weight Manual Titanium 127gr 136kg/300lbs Download - Double Head Receiver
- Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
Alloy Weight Max Patient Weight Build Height Manual Titanium 88gr 136kg/300lbs 32mm Download - Double Head Receiver
- Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
Alloy Weight Max Patient Weight Build Height Manual Titanium 98gr 136kg/300lbs 45mm Download - Double Head Receiver
- Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
Alloy Weight Max Patient Weight Build Height Manual Titanium 110gr 136kg/300lbs 60mm Download - Double Head Receiver
- Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
Alloy Weight Max Patient Weight Build Height Manual Titanium 120gr 136kg/300lbs 75mm Download - Doan's Double Head Rotating Receiver
- Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
Alloy Weight Max Patient Weight Build Height Manual Titanium 114gr 136kg/300lbs 34mm Download - Doan's Double Head Rotating Receiver
- Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
Alloy Weight Max Patient Weight Build Height Manual Titanium 129gr 136kg/300lbs 42mm Download - Doan's Double Head Rotating Receiver
- Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
Alloy Weight Max Patient Weight Build Height Manual Titanium 143gr 136kg/300lbs 53mm Download - Doan's Double Head Rotating Receiver
- Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
Alloy Weight Max Patient Weight Build Height Manual Titanium 156gr 136kg/300lbs 66mm Download - Double Head Receiver and Pyramid
- For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
Alloy Weight Max Patient Weight Build Height Manual Titanium 76gr 136kg/300lbs 32mm Download - Double Head Rotating Receiver & Pyramid
- Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
Alloy Weight Max Patient Weight Build Height Manual Titanium 117gr 136kg/300lbs 42mm Download - Double Head Rotating Receiver & Pyramid
- Offering a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using easy-access rotation set screws.
Alloy Weight Max Patient Weight Build Height Manual Titanium 104gr 136kg/300lbs 34mm Download - Double Head Rotating Receiver With Height Adjustment
- With an overall height in the shortest position at 50mm, this adapter allows the practitioner to set a custom height.
Alloy Weight Max Patient Weight Build Height (MIN) Build Height (MAX) Manual Titanium 158gr 136kg/300lbs 51mm 57mm Download - Double Head Rotating Receiver With Height Adjustment
- With an overall height in the shortest position at 58mm, this adapter allows the practitioner to set a custom height.
Alloy Weight Max Patient Weight Build Height (MIN) Build Height (MAX) Manual Titanium 172gr 136kg/300lbs 57mm 61mm Download - Double Head Pyramid
- Connector between receivers.
Alloy Weight Max Patient Weight Build Height Manual Titanium 60gr 136kg/300lbs 13mm Download - 4 Hole Rotating Frame Only

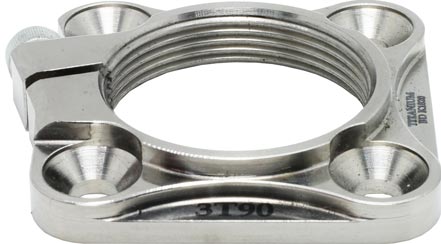

- An individual 4 hole rotation frame with clamp screw.
Alloy Weight Max Patient Weight Build Height Manual Titanium 33gr 136kg/300lbs 9mm Download - 3 Arm Lamination Anchor Only

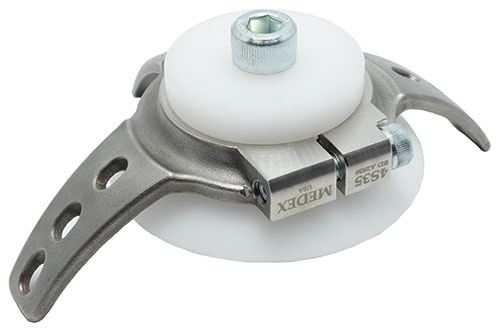

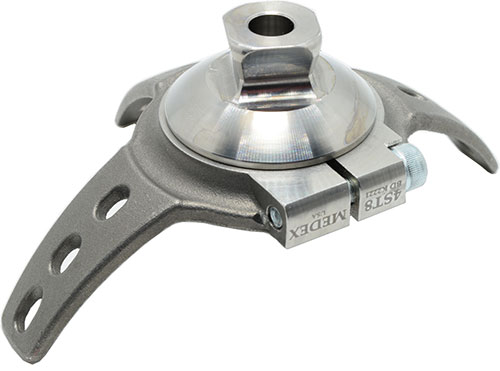

- Arched dovetail design (4T50) offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm
lamination anchor (4S35).
Alloy Weight Max Patient Weight Build Height Manual S. Steel 109gr 136kg/300lbs 9mm Download - 3 Arm A/K Lamination Anchor With Rotating Receiver
- For both A/K exoskelatal socket or thermoplastic frame lamination.

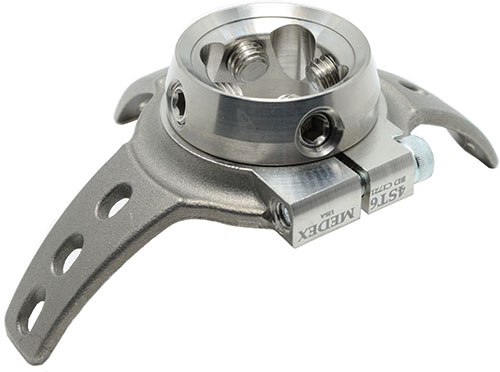

Alloy Weight Max Patient Weight Build Height Manual Titanium 160gr 136kg/300lbs 21mm Download - 3 Arm A/K Lamination Anchor With Rotating Pyramid
- For both A/K exoskelatal socket or thermoplastic frame lamination.
Alloy Weight Max Patient Weight Build Height Manual Titanium 150gr 136kg/300lbs 17mm Download - Rotating Receiver Tip
- 4 screw receiver insert with 36mm threads.
Alloy Weight Max Patient Weight Build Height Manual Titanium 48gr 136kg/300lbs 12mm Download - Rotating Pyramid Tip
- Pyramid insert with 36mm threads.
Alloy Weight Max Patient Weight Build Height Manual Titanium 38gr 136kg/300lbs 8mm Download - Rotating Pyramid Tip
- Pyramid insert with 36mm threads.
Alloy Weight Max Patient Weight Build Height Manual Titanium 44gr 136kg/300lbs 10mm Download - Rotating Pyramid Tip
- Pyramid insert with 36mm threads.
Alloy Weight Max Patient Weight Build Height Manual Titanium 48gr 136kg/300lbs 12mm Download
 |
