2A10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
106gr |
136kg/300lbs |
12mm |
|
|
 |

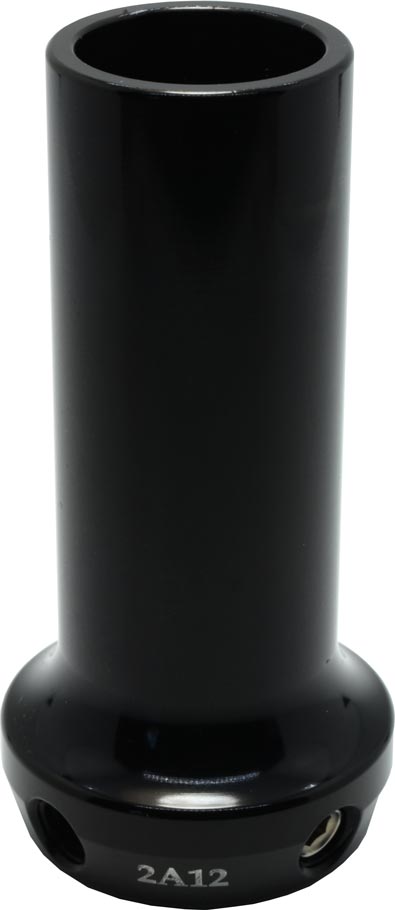

2A12
Receiver - Tube Unit
Includes four set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
90gr |
100kg/220lbs |
89mm |
 Download |
|
|
 |

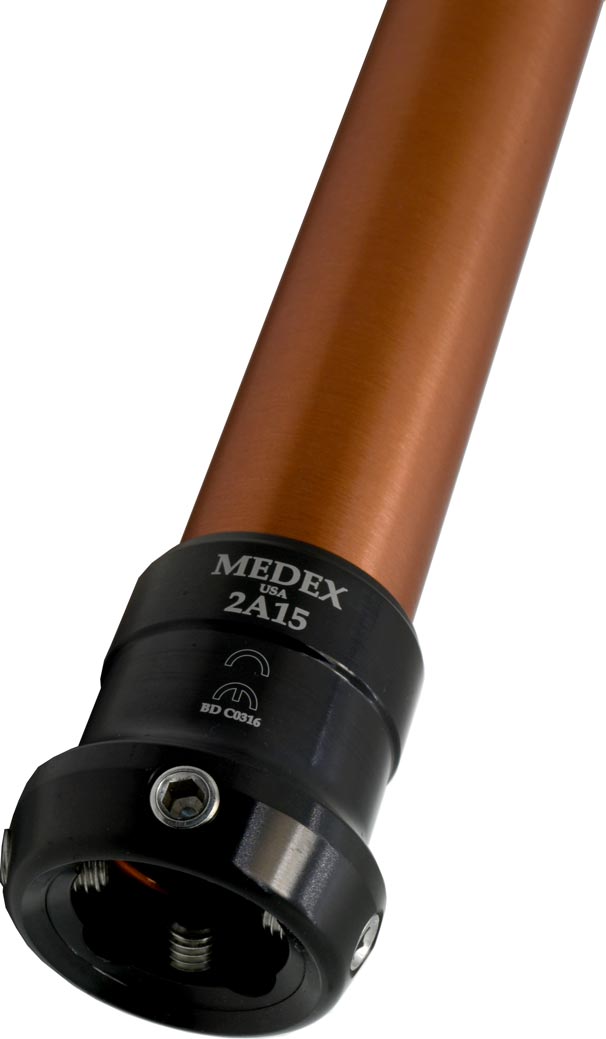

2A15
Long Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
308gr |
100kg/220lbs |
400mm |
Download |
|
|
 |

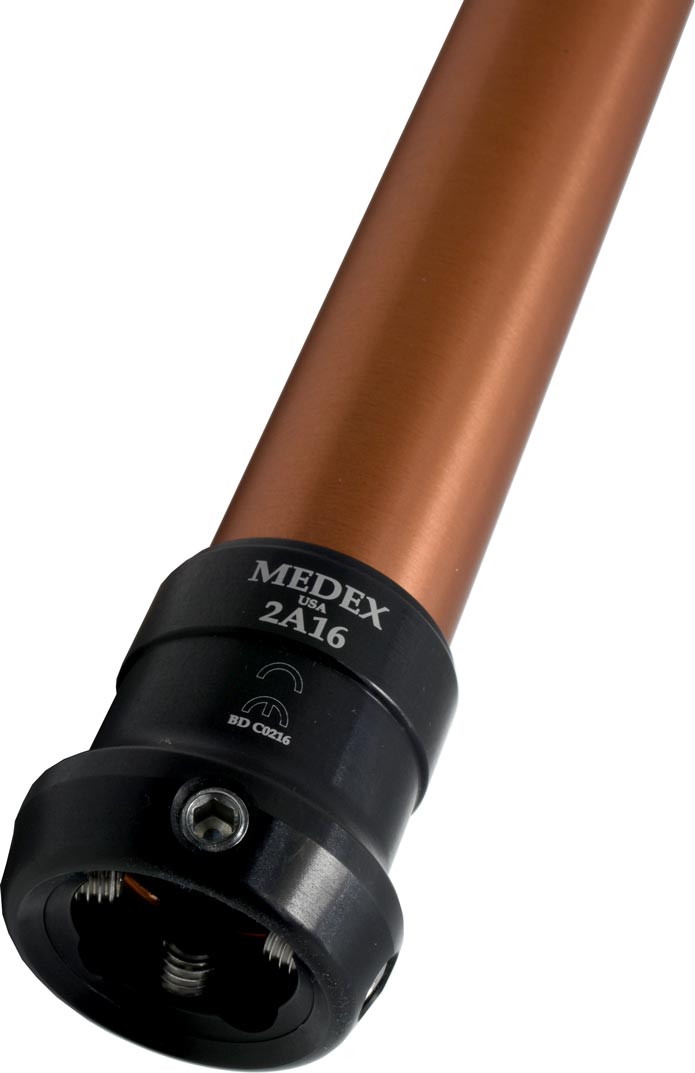

2A16
Short Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (250 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
218gr |
100kg/220lbs |
250mm |
Download |
|
|
 |

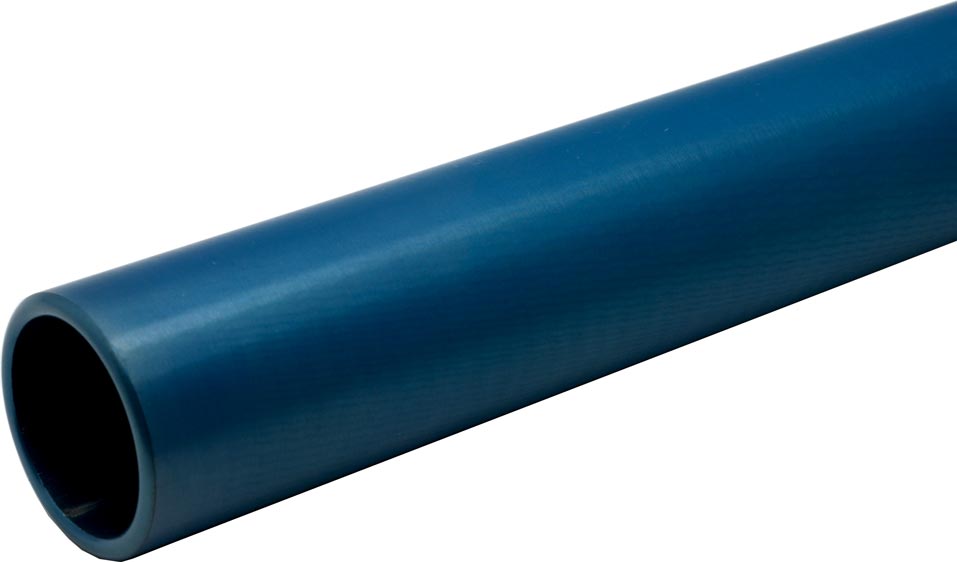

2A18
Single Pylon No Adapter
400 x 30 x 2.35mm
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
242gr |
136kg/300lbs |
400mm |
Download |
|
|
 |
2A20
Tube Clamp Adapter
For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
68gr |
100kg/220lbs |
47mm |
Download |
|
|
 |
2CT5
Child SACH Foot Adapter
Child sized connector between SACH Energy Storing Foot and pylon. Includes stainless steel bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
62gr |
80kg/175lbs |
|
|
 |
2CT6
Child Pylon With Receiver
With 4 M6 tilt adjustment set screws and 22mm anodized aluminum alloy tube. (300 x 22 x 2mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
113gr |
80kg/175lbs |
300mm |
|
|
 |
2CT7
Child Tube Clamp Adapter
For 22mm tubes. Includes 1 rotation and 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
40gr |
80kg/175lbs |
34mm |
|
|
 |
2S10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
130gr |
136kg/300lbs |
12mm |
|
|
 |

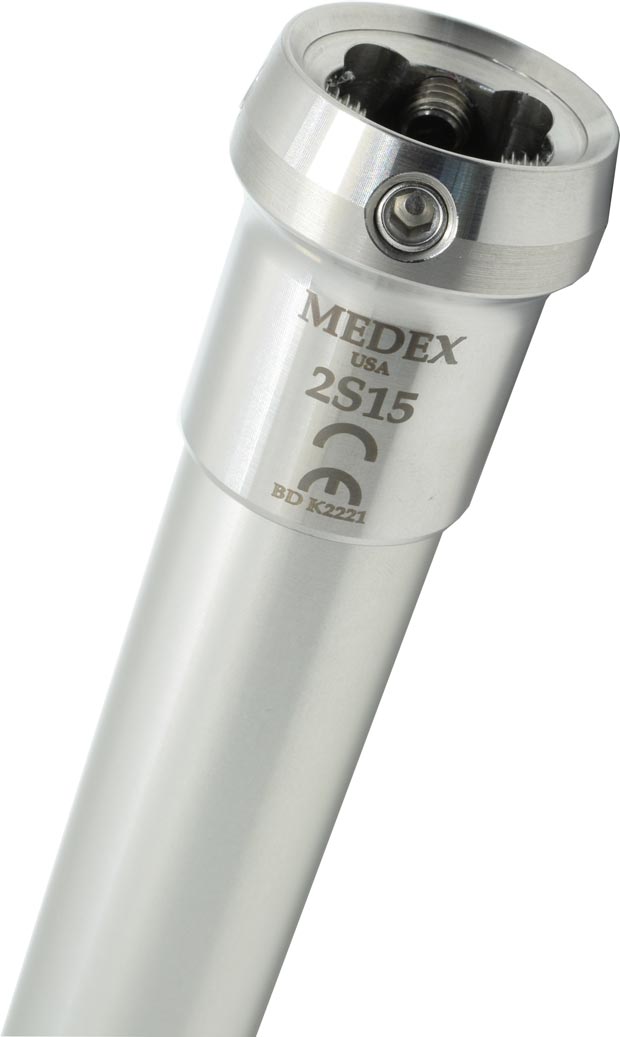

2S15
Long Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
351gr |
136kg/300lbs |
400mm |
Download |
|
|
 |

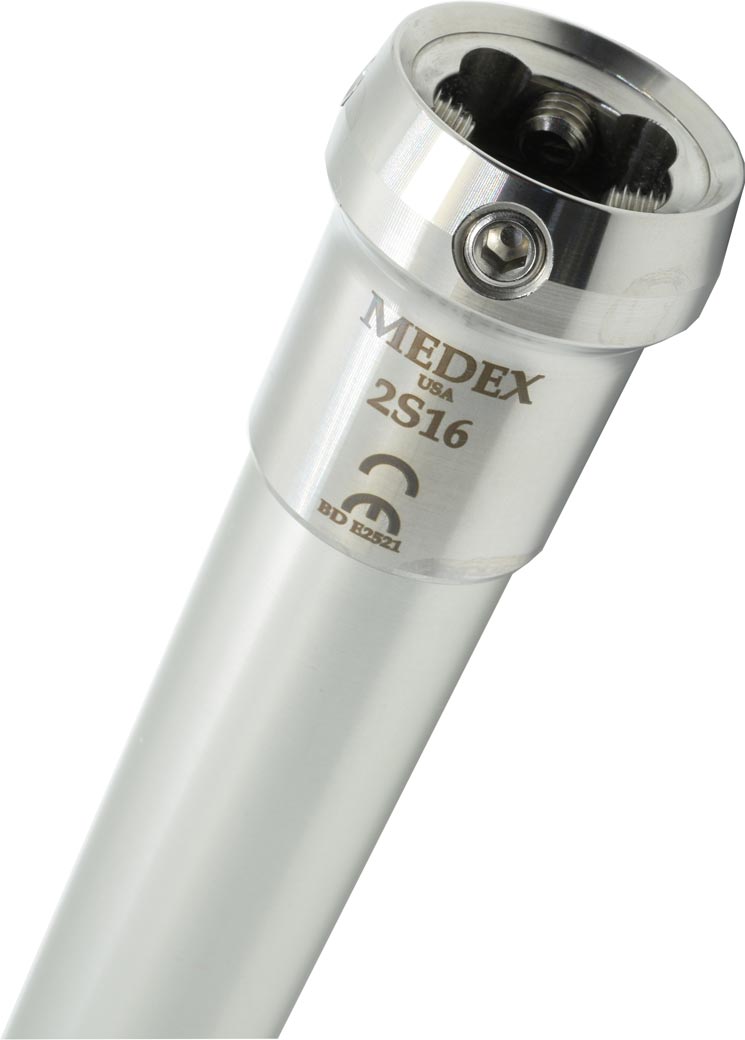

2S16
Short Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (250 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
261gr |
136kg/300lbs |
250mm |
Download |
|
|
 |

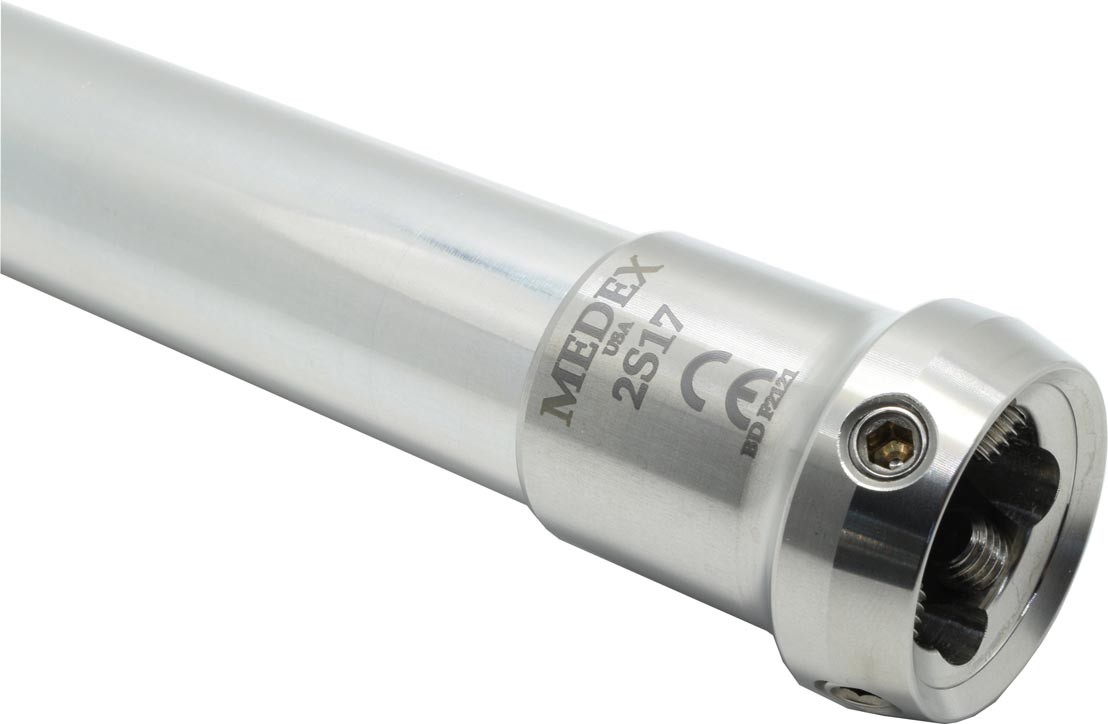

2S17
Extra Long Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (450 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
385gr |
136kg/300lbs |
450mm |
Download |
|
|
|
2S20
Tube Clamp Adapter
For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
113gr |
136kg/300lbs |
47mm |
Download |
|
|
 |
2T09
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8 (2T09) and M10 (2T/S/A10) bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
80gr |
100kg/220lbs |
12mm |
|
|
 |
2T10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
93gr |
136kg/300lbs |
12mm |
|
|
 |
2T11
Sach Foot Adapter (round)
Includes stainless steel M10 bolt, lock washer, and flat washer. Weight of the component includes stainless steel bolt and washers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
80gr |
136kg/300lbs |
12mm |
|
|
 |
2T12
Low Profile Pylon with Receiver
Internally bonded adapter allows the tube clamp to get closer, reducing the length. With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
313gr |
136kg/300lbs |
400mm |
Download |
|
|
 |
2T13
Heavy Duty Pylon With Receiver
Rated for patients up to 450 lbs. With 4 tilt adjustment set screws and 34mm aluminum alloy tube (400 x 34 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
334gr |
205kg/450lbs |
400mm |
Download |
|
|
 |
2T14
Long Pylon With Pyramid
30mm anodized aluminum alloy tube with pyramid (400 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
300gr |
136kg/300lbs |
400mm |
Download |
|
|
|
2T15
Long Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (400 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
308gr |
136kg/300lbs |
400mm |
Download |
|
|
 |
2T16
Short Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (250 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
218gr |
136kg/300lbs |
250mm |
Download |
|
|
 |
2T17
Extra Long Pylon With Receiver
With 4 tilt adjustment set screws and 30mm anodized aluminum alloy tube (450 x 30 x 2.35mm).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
343gr |
136kg/300lbs |
450mm |
Download |
|
|
|
2T20
Tube Clamp Adapter
For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
70gr |
136kg/300lbs |
47mm |
Download |
|
|
 |
2T22
Tube Clamp Adapter (10°)
For 30mm tubes. Includes 1 rotation and 4 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
78gr |
136kg/300lbs |
49mm |
Download |
|
|
 |
2T23
Heavy Duty Tube Clamp Receiver
Rated for patients up to 450 lbs. For 34mm tube. Includes 4 tilt adjustment screws and rotation set screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
75gr |
205kg/450lbs |
47mm |
Download |
|
|
 |

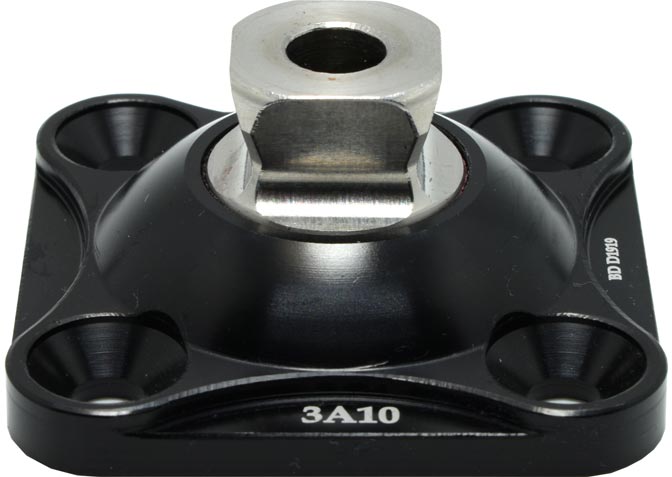

3A10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
51gr |
100kg/220lbs |
12mm |
Download |
|
|
 |
3A14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
52gr |
100kg/220lbs |
9mm |
Download |
|
|
 |
3A18

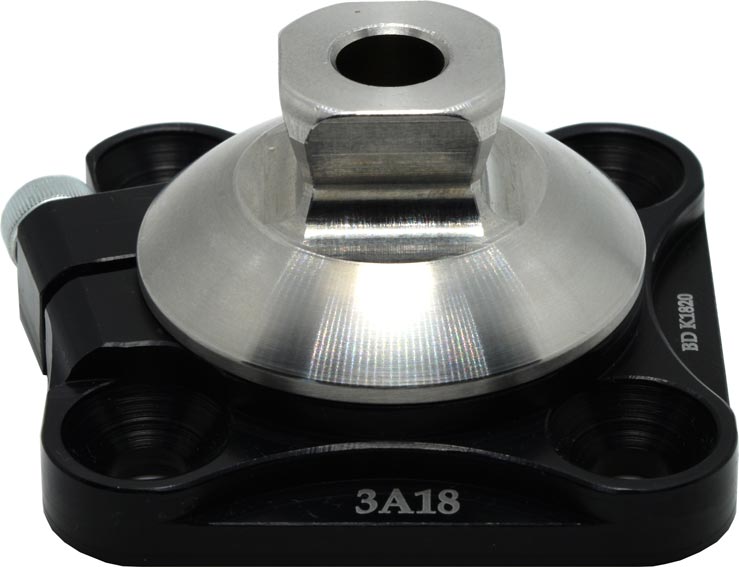

Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
99gr |
100kg/220lbs |
17mm |
Download |
|
|
 |
3A20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
40gr |
100kg/220lbs |
17mm |
Download |
|
|
 |

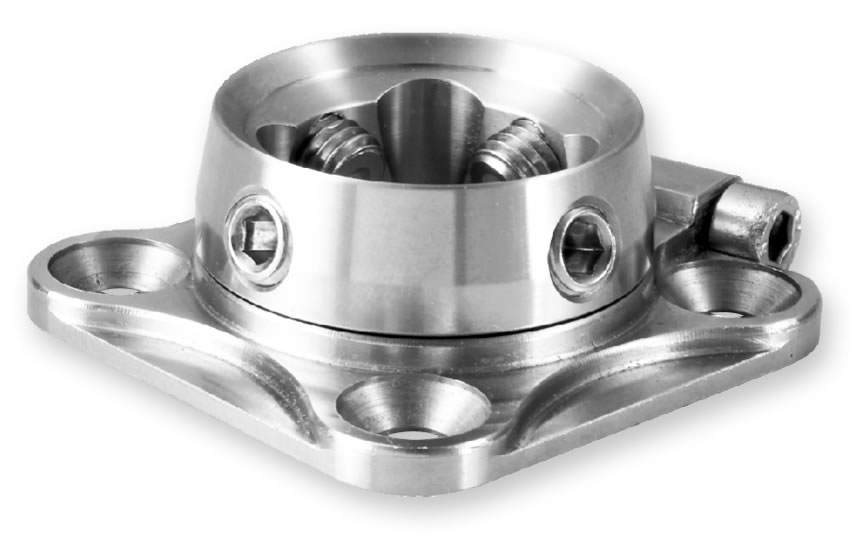

3A23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
74gr |
100kg/220lbs |
21mm |
Download |
|
|
 |
3A50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
65gr |
100kg/220lbs |
32mm |
Download |
|
|
 |
3A51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
80gr |
100kg/220lbs |
45mm |
Download |
|
|
 |
3A52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
94gr |
100kg/220lbs |
60mm |
Download |
|
|
 |
3A53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
112gr |
100kg/220lbs |
75mm |
Download |
|
|
 |

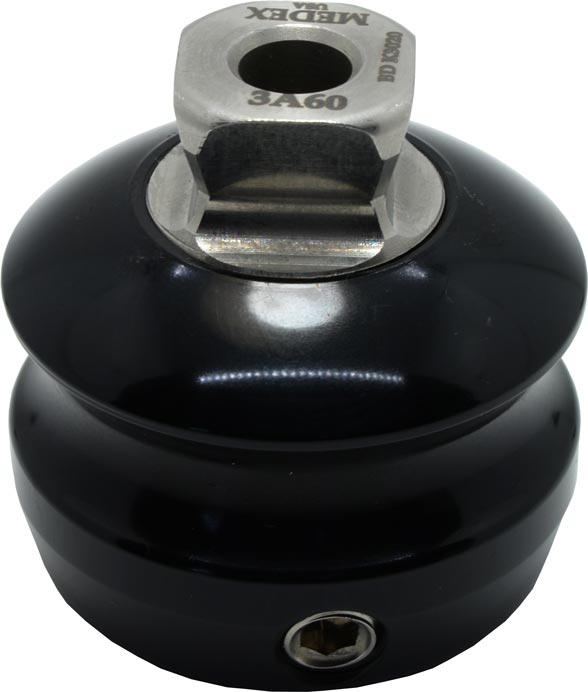

3A60
Double Head Receiver and Pyramid
For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
65gr |
100kg/220lbs |
32mm |
Download |
|
|
 |
3CT1
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
69gr |
80kg/175lbs |
26mm |
|
|
 |
3CT2
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
79gr |
80kg/175lbs |
37mm |
|
|
 |
3CT3
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
88gr |
80kg/175lbs |
48mm |
|
|
 |
3CT4
Child Double Head Rotating Receiver
For use in situations when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at the desired position. Includes 8 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
94gr |
80kg/175lbs |
60mm |
|
|
 |
3CT5
Child Pyramid With 4 Holes
Connector between socket and pylon, 6.5mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
26gr |
80kg/175lbs |
10mm |
|
|
 |
3CT6
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
44gr |
80kg/175lbs |
22mm |
|
|
 |
3CT7
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
51gr |
80kg/175lbs |
32mm |
|
|
 |
3CT8
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
60gr |
80kg/175lbs |
45mm |
|
|
 |
3CT9
Child Double Head Receiver
Connector between two pyramid adapters. Includes 8 M6 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
70gr |
80kg/175lbs |
60mm |
|
|
 |
3S10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
84gr |
136kg/300lbs |
12mm |
Download |
|
|
 |

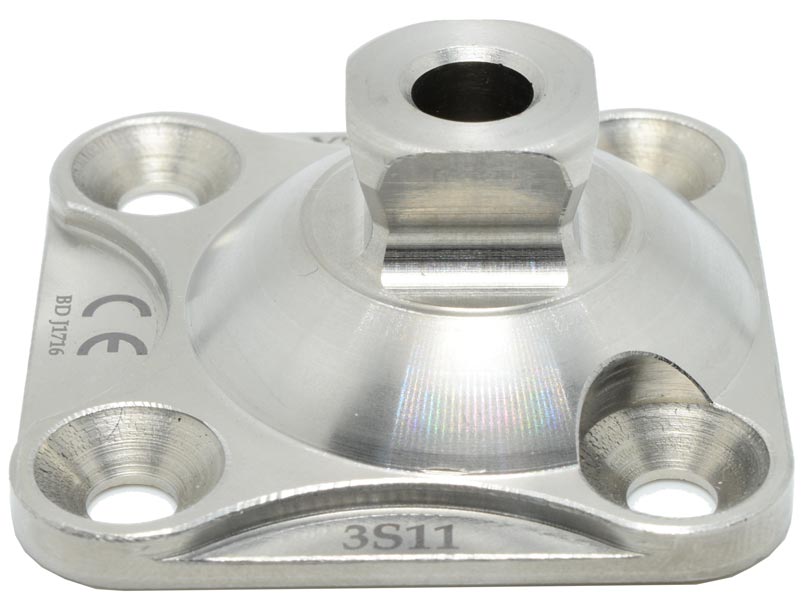

3S11
Pyramid With 4 Holes & Axial Offset
Connector between socket and pylon with pyramid set 8mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
108gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3S12

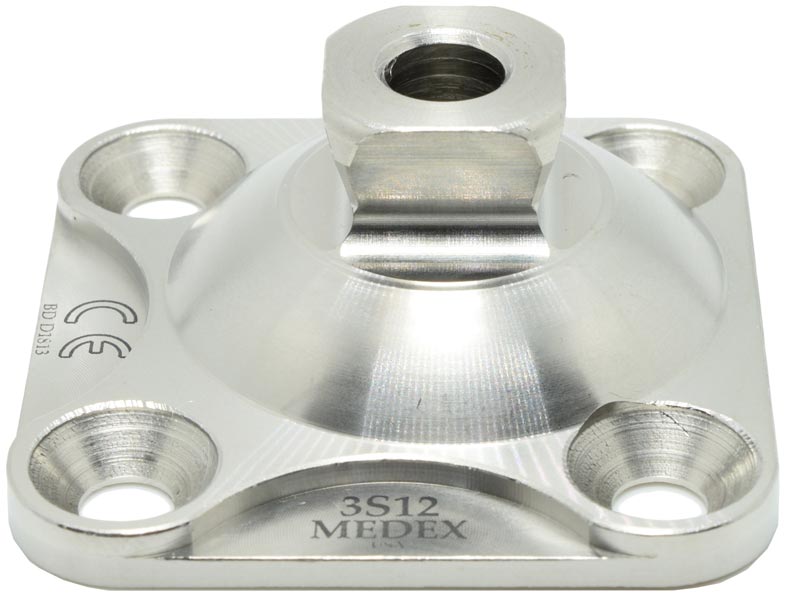

Pyramid With 4 Holes & Diagonal Offset
Connector between socket and pylon with pyramid set 5mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
108gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3S14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
107gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
3S17
Receiver With 4 Prongs
Ideal for long stumps. Includes 4 stainless steel angular adjustment screws (flat head).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
92gr |
136kg/300lbs |
14mm |
Download |
|
|
 |
3S18
Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
124gr |
136kg/300lbs |
17mm |
|
|
|
3S20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
102gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3S23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
130gr |
136kg/300lbs |
21mm |
|
|
 |
3S50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
135gr |
136kg/300lbs |
32mm |
Download |
|
|
 |
3S51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
156gr |
136kg/300lbs |
45mm |
Download |
|
|
 |
3S52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
179gr |
136kg/300lbs |
60mm |
Download |
|
|
 |
3S53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
197gr |
136kg/300lbs |
75mm |
Download |
|
|
 |
3S60
Double Head Receiver and Pyramid
For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
124gr |
136kg/300lbs |
32mm |
Download |
|
|
 |
3S70
Double Head Pyramid
Connector between receivers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
109gr |
136kg/300lbs |
13mm |
Download |
|
|
 |
3T09
Pyramid With 4 Holes
Connector between socket and pylon, 10mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
46gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T10
Pyramid With 4 Holes
Connector between socket and pylon, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
50gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T11
Pyramid With 4 Holes & Axial Offset
Connector between socket and pylon with pyramid set 8mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T12
Pyramid With 4 Holes & Diagonal Offset
Connector between socket and pylon with pyramid set 5mm off from axis, 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
3T13
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
62gr |
136kg/300lbs |
10mm |
Download |
|
|
 |
3T14
Pyramid With 4 Prongs
Connector between socket and pylon lamination. Rough machined prongs for improved lamination bonding. Includes rubber lamination dummy (not included in weight) 6.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
52gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
3T15
Rotating Pyramid With 4 Prongs
A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustment. 8.2mm center hole.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
92gr |
136kg/300lbs |
19mm |
Download |
|
|
 |
3T16
Rotating Receiver With 4 Prongs
A problem solver for situations where there is limited space due to stump length or high profile foot, these 4 prong lamination adapters allow for axial rotation adjustments.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
101gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
3T17
Receiver With 4 Prongs
Ideal for long stumps. Includes 4 stainless steel angular adjustment screws (flat head).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
56gr |
136kg/300lbs |
14mm |
Download |
|
|
 |
3T18
Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw. Center pin hole diameter is 8.2mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
71gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T19
Rotating Pyramid With 4 Holes
Center hole 10mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
71gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T20
Receiver With 4 Holes
Connector between socket and pylon.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
65gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
3T23
Rotating Receiver With 4 Holes
Rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
80gr |
136kg/300lbs |
21mm |
Download |
|
|
 |
3T24
Rotatable pyramid adapter with 4 holes diagonal offset
Socket to pylon connector with threaded rotation.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
109gr |
136kg/300lbs |
Download |
|
|
 |
3T25
Rotatable pyramid adapter with 4 holes axial offset
Socket to pylon connector with threaded rotation.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
109gr |
136kg/300lbs |
Download |
|
|
 |
3T26
Rotatable pyramid receiver with 4 holes diagonal offset
Socket to pylon connector with threaded rotation. Single screw rotation set and 4 M8x12 stainless steel angular adjustment socket set screws.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
127gr |
136kg/300lbs |
Download |
|
|
 |
3T27
Rotatable pyramid receiver with 4 holes axial offset
Socket to pylon connector with threaded rotation. Single screw rotation set and 4- M8x12 stainless steel angular adjustment socket set screws.
| Alloy |
Weight |
Max Patient Weight |
Manual |
| Titanium |
127gr |
136kg/300lbs |
Download |
|
|
 |
3T30
Rotating Sliding Pyramid With 4 Holes
Pyramid on one end and 4 hole frame (3T90) on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
154gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
3T31
Rotating Sliding Pyramid With 4 Holes
Pyramid on one end and 4 hole frame (3T90) on the other. Arched dovetail design offers adjustable angles,increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
154gr |
136kg/300lbs |
31mm |
Download |
|
|
 |
3T35
Rotating Sliding Receiver With 4 Holes
Pyramid receiver on one end and 4 hole frame (3T90) on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
152gr |
136kg/300lbs |
37mm |
Download |
|
|
 |
3T36
Rotating Sliding Receiver With 4 Holes
Pyramid receiver on one end and 4 hole frame (3T90) on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
152gr |
136kg/300lbs |
38mm |
Download |
|
|
 |
3T50
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
88gr |
136kg/300lbs |
32mm |
Download |
|
|
 |
3T51
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
98gr |
136kg/300lbs |
45mm |
Download |
|
|
 |
3T52
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
110gr |
136kg/300lbs |
60mm |
Download |
|
|
 |
3T53
Double Head Receiver
Connector between two pyramid adapters. Includes 8 stainless steel angular adjustment screws. Allows better adjustment for long stumps and reduces weight.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
120gr |
136kg/300lbs |
75mm |
Download |
|
|
 |
3T54
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
114gr |
136kg/300lbs |
34mm |
Download |
|
|
 |
3T55
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
129gr |
136kg/300lbs |
42mm |
Download |
|
|
 |
3T56
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
143gr |
136kg/300lbs |
53mm |
Download |
|
|
 |
3T57
Doan's Double Head Rotating Receiver
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
156gr |
136kg/300lbs |
66mm |
Download |
|
|
 |
3T60
Double Head Receiver and Pyramid
For connection between a pyramid and receiver with adjustment screws. Allows changing the angles at the distal and proximal ends.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
76gr |
136kg/300lbs |
32mm |
Download |
|
|
 |
3T61
Double Head Rotating Receiver & Pyramid
Created for use when distance is a problem and conventional double head adapters do not solve issues requiring rotation of components. To modify the angle of the socket and pylon, this double-head receiver rotates to make final adjustments for correct toe out and knee directions. Easy-access set screws lock the adapter at desired position.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
117gr |
136kg/300lbs |
42mm |
Download |
|
|
 |
3T63
Double Head Rotating Receiver & Pyramid
Offering a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using easy-access rotation set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
104gr |
136kg/300lbs |
34mm |
Download |
|
|
 |
3T65
Double Head Rotating Receiver With Height Adjustment
With an overall height in the shortest position at 50mm, this adapter allows the practitioner to set a custom height.
| Alloy |
Weight |
Max Patient Weight |
Build Height (MIN) |
Build Height (MAX) |
Manual |
| Titanium |
158gr |
136kg/300lbs |
51mm |
57mm |
Download |
|
|
 |
3T66
Double Head Rotating Receiver With Height Adjustment
With an overall height in the shortest position at 58mm, this adapter allows the practitioner to set a custom height.
| Alloy |
Weight |
Max Patient Weight |
Build Height (MIN) |
Build Height (MAX) |
Manual |
| Titanium |
172gr |
136kg/300lbs |
57mm |
61mm |
Download |
|
|
 |
3T70
Double Head Pyramid
Connector between receivers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
60gr |
136kg/300lbs |
13mm |
Download |
|
|
 |
3T80
Double Head Sliding Receiver
Both end receiver. Slides in either direction, allowing for custom lateral offset.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
43mm |
Download |
|
|
 |
3T81
Double Head Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
35mm |
Download |
|
|
 |
3T82
Double Head Rotating Sliding Receiver
Both end pyramid receiver with slide and rotation and an overall height of 52mm. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
192gr |
136kg/300lbs |
52mm |
Download |
|
|
 |
3T83
Double Head Rotating Sliding Pyramid
Rotatable pyramid on one end and receiver on the other with an overall height of 47mm. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
193gr |
136kg/300lbs |
47mm |
Download |
|
|
 |
3T85
Sliding Tube Clamp Receiver
Tube clamp adapter on one end and pyramid receiver on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
149gr |
136kg/300lbs |
61mm |
Download |
|
|
 |
3T86
Sliding Tube Clamp Pyramid
Tube clamp adapter on one end and pyramid on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
158gr |
136kg/300lbs |
54mm |
Download |
|
|
 |
3T87
Arched Sliding Tube Clamp Receiver
Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
149gr |
136kg/300lbs |
62mm |
Download |
|
|
 |
3T88
Arched Sliding Tube Clamp Pyramid
Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
158gr |
136kg/300lbs |
57mm |
Download |
|
|
 |
3T90
4 Hole Rotating Frame Only
An individual 4 hole rotation frame with clamp screw.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
33gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
3T95
Double Head Rotating Sliding Receiver
Both end pyramid receiver with slide and rotation and an overall height of 55mm. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
192gr |
136kg/300lbs |
55mm |
Download |
|
|
 |
3T96
Double Head Rotating Sliding Pyramid
Rotatable pyramid on one end and receiver on the other with an overall height of 48mm. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
193gr |
136kg/300lbs |
48mm |
Download |
|
|
 |
3T98
Double Head Sliding Receiver
Both end receiver. Arched dovetail design (3T98) provides adjustable angles, increasing lateral offset capability based on the pylon length. Use when more than 11mm lateral offset is needed. Overall height 44mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
44mm |
Download |
|
|
 |
3T99
Double Head Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Arched dovetail design (3T99) offers adjustable angles, increasing lateral offset capability based on the pylon length. Overall height of 37mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
157gr |
136kg/300lbs |
37mm |
Download |
|
|
 |
3TC1
Child Rotating Pyramid With 4 Holes
Socket to pylon connector with threaded rotation. Eliminates the use of pressure plates and sets rotation with one screw.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
44gr |
80kg/175lbs |
|
|
 |
3TC2
Child Rotating Receiver With 4 Holes
Child sized rotatable connector between socket and pylon. Threaded rotation allows rotation set with one screw.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
51gr |
80kg/175lbs |
|
|
 |
4A20
RIM System Shuttle Lock with 1.5" pin
Integrated rotatable pyramid with corrosion resistant stainless steel pin and locking mechanism in Delrin housing. Includes 3 lamination dummy screws. Waterproof.
| Alloy |
Weight |
Max Patient Weight |
| Aluminum |
160gr |
136kg/300lbs |
|
|
 |
4A25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Aluminum body with titanium pyramid, adjustable release button. Locking mechanism is placed inside the pyramid dome. Build height is 29mm and the weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
99gr |
100kg/220lbs |
29mm |
|
|
 |
4A65
Coupling
4A65 is a lamination connector coupling for conventional laminated sockets.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
75gr |
136kg/300lbs |
24mm |
|
|
 |
4A80
Connector Plate
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Aluminum |
70gr |
136kg/300lbs |
10mm |
Download |
|
|
 |
4AT1
Lamination RIM With Rotating Receiver
70mm RIM with Rotatable Pyramid Receiver. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
117gr |
136kg/300lbs |
27mm |
|
|
 |
4AT2
Lamination RIM With Rotating Receiver
63mm RIM with Rotatable Pyramid Receiver. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
99gr |
136kg/300lbs |
26mm |
|
|
 |
4AT3
Lamination RIM With Rotating Pyramid
70mm RIM with Rotatable Pyramid. Includes 3 lamination dummy screws and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
122gr |
136kg/300lbs |
23mm |
|
|
 |
4AT4
Lamination RIM With Rotating Pyramid
63mm RIM with Rotatable Pyramid. Includes 3 lamination dummy screws and 3 M8x6 stainless steel set screws. 63mm RIM will help the distal end of the socket to form better around thin stumps allowing a better formed socket shape.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
93gr |
136kg/300lbs |
22mm |
|
|
 |
4AT5
Lamination RIM With Rotating Sliding Pyramid
70mm RIM and Rotatable Pyramid with Slide. Includes 3 lamination dummy screws and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
197gr |
136kg/300lbs |
34mm |
|
|
 |
4AT6
Lamination RIM With Rotating Sliding Pyramid
63mm RIM and Rotatable Pyramid with Slide. Includes 3 lamination dummy screws and 3 M8x6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
183gr |
136kg/300lbs |
33mm |
|
|
 |
4AT7
Lamination RIM With Rotating Sliding Receiver
70mm RIM and Rotatable Pyramid Receiver with Slide. Includes 3 lamination dummy screws 4 M8x12 and 3 M8x12 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
196gr |
136kg/300lbs |
43mm |
|
|
 |
4AT8
Lamination RIM With Rotating Sliding Receiver
63mm RIM and Rotatable Pyramid Receiver with Slide. Includes 3 lamination dummy screws 4 M8x12 and 3 M8X6 stainless steel set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
178gr |
136kg/300lbs |
42mm |
|
|
 |
4CT1
Child Double Head Rotating Receiver & Pyramid
Offers a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using 3 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
66gr |
80kg/175lbs |
0mm |
|
|
 |
4CT2
Child Double Head Rotating Receiver & Pyramid
Offers a pyramid on one end and receiver on the other. Used for minimal stump to floor distances, this adapter rotates for final socket adjustment on the pylon to correct toe out and knee directions. Safety locked at desired position using 3 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
72gr |
80kg/175lbs |
30mm |
|
|
 |
4CT3
Double Head Pyramid to Pediatric Converter
One end pediatric pyramid and the other end adult four screw pyramid receiver. Converts adult pyramid to pediatric pyramid.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
65gr |
80kg/175lbs |
15mm |
|
|
 |
4CT7
Child Double Head Arched Sliding Receiver
Double ended receiver. Arched dovetail design provides adjustable angles, increasing lateral offset capability based on the pylon length. Safety locked at desired position using 2 easy-access rotation set screws. Includes 8 M6 tilt adjustment set screws. Overall height 37mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
116gr |
80kg/175lbs |
38mm |
|
|
 |
4CT8
Child Double Head Arched Sliding Receiver & Pyramid
Pyramid on one end and receiver on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length.
Safety locked at desired position using 2 easy-access rotation set screws. Includes 4 M6 tilt adjustment set screws. Overall height 42mm.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
121gr |
80kg/175lbs |
34mm |
|
|
 |
4CT9
Child Sliding Tube Clamp Pyramid
Child sized tube clamp adapter on one end and pyramid on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
93gr |
80kg/175lbs |
|
|
 |
4S20
3 Arm A/K Lamination Anchor With Pyramid
For both A/K exoskelatal socket or thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
125gr |
136kg/300lbs |
15mm |
Download |
|
|
 |
4S30
3 Arm A/K Lamination Anchor With Rotating Receiver
For both A/K exoskelatal socket or thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
184gr |
136kg/300lbs |
21mm |
Download |
|
|
 |
4S35
3 Arm Lamination Anchor Only
Arched dovetail design (4T50) offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm
lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
109gr |
136kg/300lbs |
9mm |
Download |
|
|
 |
4S40
3 Arm A/K Lamination Anchor With Rotating Pyramid
For both A/K exoskelatal socket or thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| S. Steel |
175gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
4ST6
3 Arm A/K Lamination Anchor With Rotating Receiver
For both A/K exoskelatal socket or thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
160gr |
136kg/300lbs |
21mm |
Download |
|
|
 |
4ST8
3 Arm A/K Lamination Anchor With Rotating Pyramid
For both A/K exoskelatal socket or thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
150gr |
136kg/300lbs |
17mm |
Download |
|
|
 |
4T08
Rotating Receiver Tip
4 screw receiver insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
48gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
4T09
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
38gr |
136kg/300lbs |
8mm |
Download |
|
|
 |
4T10
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
44gr |
136kg/300lbs |
10mm |
Download |
|
|
 |
4T11
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
48gr |
136kg/300lbs |
12mm |
Download |
|
|
 |
4T14
Rotating Sliding Pyramid Tip
Pyramid on one end and 36mm threads on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
122gr |
136kg/300lbs |
19mm |
Download |
|
|
 |
4T15
Rotating Sliding Receiver Tip
Receiver on one end and 36mm threads on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
120gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
4T20
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 70mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
200gr |
136kg/300lbs |
38mm |
|
|
 |
4T21
RIM System Shuttle Lock
RIM System allows the Shuttle Lock to be installed inside the pyramid dome, thus reducing the build height significantly and cancelling the need for lamination dummy. 63mm RIM radius. RIM is constructed with aerospace grade aluminum with stainless steel rotation set screws while the pyramid dome and head is constructed of titanium. Shuttle lock inside the pyramid shell is Delrin thermoplastic with stainless steel catch and springs. Plastic push button can be cut to desired length or removed completely. 8mm pin is included.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
181gr |
136kg/300lbs |
37mm |
|
|
 |
4T25
4 Hole Mounting Shuttle Lock
Ideal in situations where space is very critical for pylon height. Includes titanium body with titanium pyramid, adjustable release button and 4 hole frame with threaded rotation. Locking mechanism is placed inside the pyramid dome reducing build height to 32mm. Weight includes pin, inner retainer and pyramid as a set.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
184gr |
136kg/300lbs |
32mm |
|
|
 |
4T26
Screw Thread Shuttle Lock
For A/K or heavy use B/K situations, these shuttle locks are mounted on 3 arm stainless steel lamination anchors. The product weights listed include the anchor and pin.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
220gr |
136kg/300lbs |
27mm |
|
|
 |
4T28
4 Prong Combination Shuttle Lock
Unique design combines many features needed for B/K and light-weight A/K cases. It eliminates the need for an inner socket retainer block, saves space on the length of the pylon and enables rotation adjustment. Dummy (included) makes for easy lamination. Product weights include pin and all other features except dummy.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
147gr |
136kg/300lbs |
38mm |
|
|
 |
4T31
3 Arm A/K Lamination Anchor With Rotating Sliding Receiver
With sliding and rotating titanium 4 screw receiver tip. Maximum slide of 11mm either direction.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
228gr |
136kg/300lbs |
27mm |
Download |
|
|
 |
4T41
3 Arm A/K Lamination Anchor With Rotating Sliding Pyramid
With sliding and rotating titanium pyramid tip. Maximum slide of 11mm either direction.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
229gr |
136kg/300lbs |
28mm |
Download |
|
|
 |
4T50
Rotating Sliding Pyramid Tip
Pyramid on one end and 36mm threads on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
122gr |
136kg/300lbs |
22mm |
Download |
|
|
 |
4T51
Rotating Sliding Receiver Tip
Receiver on one end and 36mm threads on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
Build Height |
Manual |
| Titanium |
120gr |
136kg/300lbs |
29mm |
Download |
|
|
 |
4T55
Arched Sliding Tube Clamp with Threaded Rotation
Tube clamp with 36mm threads. Arched dovetail design (4T50) offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
125gr |
136kg/300lbs |
|
|
 |
4TC1
Child 3 Arm A/K Lamination Anchor With Rotating Receiver
For both A / K Exoskelatal Socket or Thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
116gr |
80kg/175lbs |
26mm |
|
|
 |
4TC2
Child 3 Arm A/K Lamination Anchor With Rotating Pyramid
For both A / K Exoskelatal Socket or Thermoplastic frame lamination.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
108gr |
80kg/175lbs |
20mm |
|
|
 |
4TC5
Child Lamination RIM With Rotating Pyramid
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
66gr |
80kg/175lbs |
|
|
 |
4TC6
Child Lamination RIM With Rotating Receiver
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
72gr |
80kg/175lbs |
|
|
 |
4TC7
Child Connector Plate
| Alloy |
Weight |
Max Patient Weight |
| Titanium |
116gr |
80kg/175lbs |
|
|
 |
5S40
Modular Single Axis Knee Joint
With stance control, constant friction and extension assist. For above knee amputees. Connection of the upper joint to the swing axis and connection of the lower joint to the knee axis creates a functional load dependent brake. Recommended for amputees with lower and moderate functional levels. Includes extension assist cable, compression springs, distal anchor shell, and adjustment ring.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
525gr |
100kg/220lbs |
55mm |
|
|
 |
5S50
Modular Single Axis Knee Joint
With lock and internal extension assist. For above knee amputees. Upper and lower joints are connected through the knee axis by a bushing. The adjustable lock secures the knee in extension and the lock is released using the cable. Internal spring extension assist provides automatic locking of the knee at full extension. It helps control swing phase and has a high stance stability. Recommended for amputees with lower functional levels.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
525gr |
100kg/220lbs |
89mm |
|
|
 |
5T40
Modular Single Axis Knee Joint
With stance control, constant friction and extension assist. For above knee amputees. Connection of the upper joint to the swing axis and connection of the lower joint to the knee axis creates a functional load dependent brake. Recommended for amputees with lower and moderate functional levels. Includes extension assist cable, compression springs, distal anchor shell, and adjustment ring.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
349gr |
100kg/220lbs |
55mm |
|
|
 |
5T50
Modular Single Axis Knee Joint
With lock and internal extension assist. For above knee amputees. Upper and lower joints are connected through the knee axis by a bushing. The adjustable lock secures the knee in extension and the lock is released using the cable. Internal spring extension assist provides automatic locking of the knee at full extension. It helps control swing phase and has a high stance stability. Recommended for amputees with lower functional levels.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
385gr |
100kg/220lbs |
89mm |
|
|
