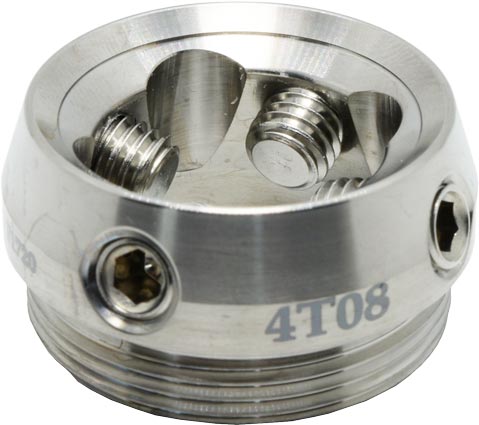

4T08
Rotating Receiver Tip
4 screw receiver insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
48gr |
136kg/300lbs |
12mm |  Download |
|
|
 |

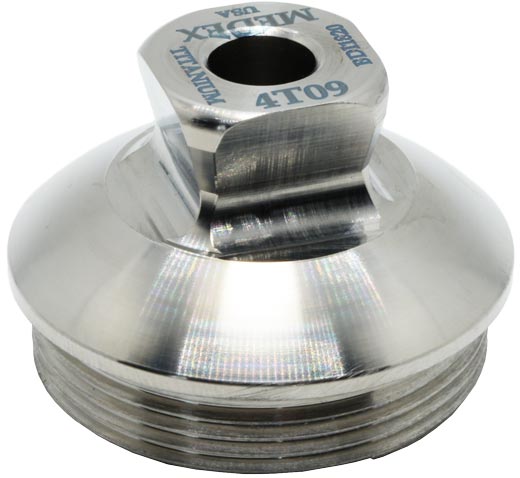

4T09
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
38gr |
136kg/300lbs |
8mm | Download |
|
|
 |

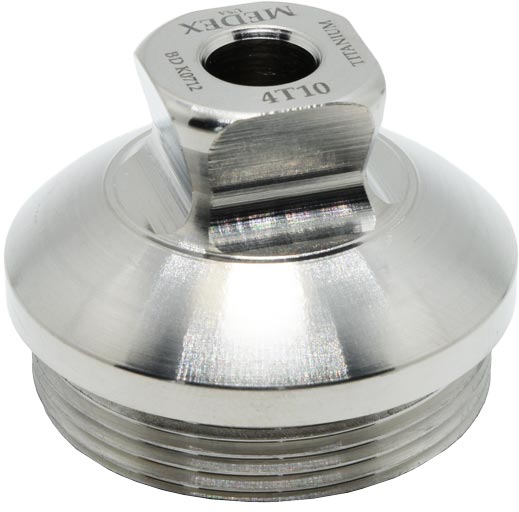

4T10
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
44gr |
136kg/300lbs |
10mm | Download |
|
|
 |

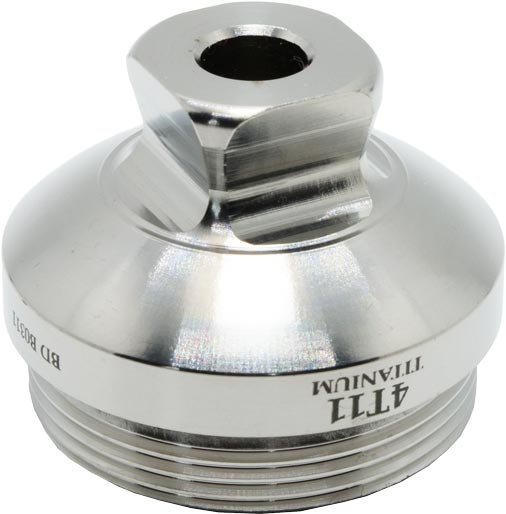

4T11
Rotating Pyramid Tip
Pyramid insert with 36mm threads.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
48gr |
136kg/300lbs |
12mm | Download |
|
|
 |
4T14
Rotating Sliding Pyramid Tip
Pyramid on one end and 36mm threads on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
122gr |
136kg/300lbs |
19mm | Download |
|
|
 |

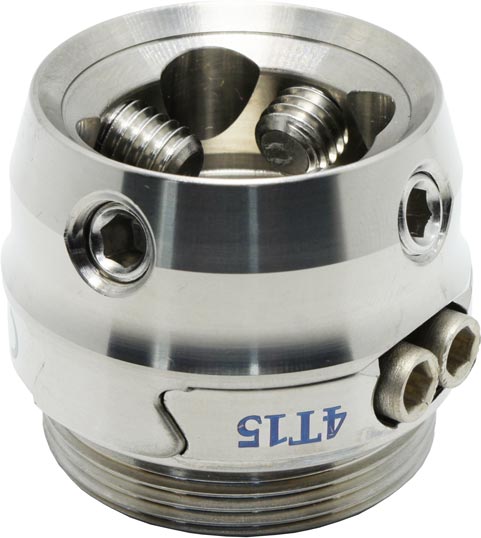

4T15
Rotating Sliding Receiver Tip
Receiver on one end and 36mm threads on the other. Slides in either direction allowing for custom lateral offset with 2 locking screws.
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
120gr |
136kg/300lbs |
28mm | Download |
|
|
 |

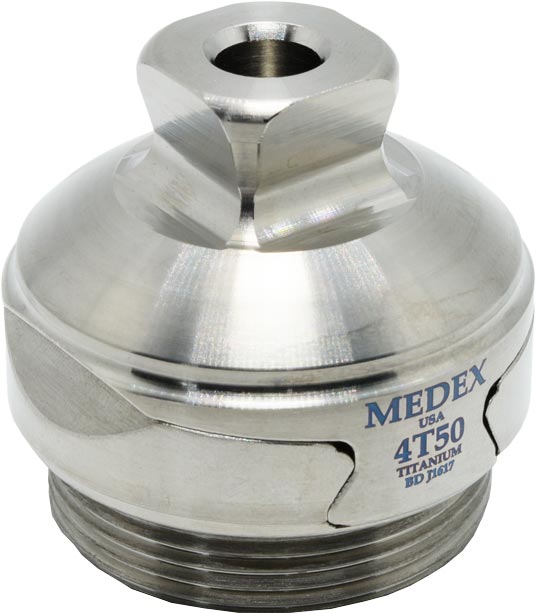

4T50
Rotating Sliding Pyramid Tip
Pyramid on one end and 36mm threads on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
122gr |
136kg/300lbs |
22mm | Download |
|
|
 |

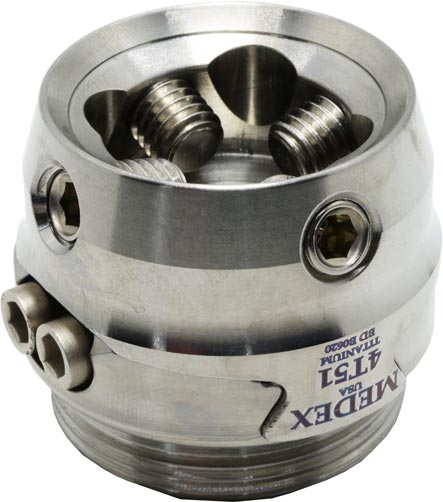

4T51
Rotating Sliding Receiver Tip
Receiver on one end and 36mm threads on the other. Arched dovetail design offers adjustable angles, increasing lateral offset capability based on the pylon length. For use with 4 hole frame (3T90) or 3 arm lamination anchor (4S35).
| Alloy |
Weight |
Max Patient Weight |
Build Height | Manual |
| Titanium |
120gr |
136kg/300lbs |
29mm | Download |
|
|
